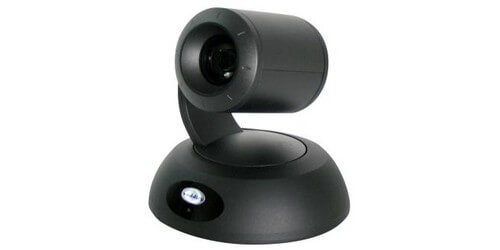

Vaddio RoboSHOT 30 QCCU
Conference Room PTZ HD Camera w/ Quick Connect CCU
The RoboSHOT 30 QCCU HD PTZ Camera is a professional quality PTZ camera with high quality imaging, fine detail and exceptional color reproduction. This camera offers integrators, dealers and end users with an incredible improvement over other conferencing cameras available today.
The RoboSHOT 30 is perfect for medium to larger sized rooms that can accommodate applications such as conference rooms, meeting rooms, board rooms, training rooms, churches, classrooms, and much more. The 30x zoom features a 63.7 degree wide horizontal field of view that can pick up everyone in the room.
One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion. Tri-Synchronous Motion is a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.

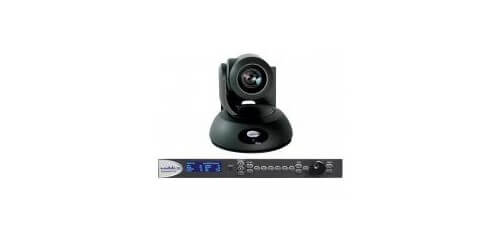

The Quick-Connect CCU enables the adjustment of AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris and gain controls with a simple press of a buttom on the Quick-Connect CCU. These controls deliver a more accurate representation of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons.
The Quick-Connect CCU delivers high-quality HD Video, power and control over three Cat. 5 cables up to 500 feet without loss of video quality or latency. Outputs include analog component YPbPr, HDMI and HD-SDI for extreme flexibility in system design and integration. All outputs are live simultaneously.
- 30X optical zoom with a 73 wide horizontal field of view
- Exmor 1/2.8", 2.34 Megapixel, HD (1080p/60 native) high-speed, low noise CMOS sensor
- Features Tri-Synchronous Motion & Range-Set
- Built-in web server for setup and control
- Quick-Connect Universal CCU Interface with HDMI, HD-SDI and HD YPbPr Outputs
- Power/Video/Control on two Cat-5's uo to 500'
- Includes: RoboSHOT Conference Cat-5 Camera, Thin Profile Wall Mount and Hardware, EZCamera Control Adapter, Quick-Connect Universal CCU Interface with HDMI, HD-SDI and HD YPbPr Outputs
- Warranty: 2 years
