Vaddio CeilingVIEW 70 PTZ

Ceiling Mounted EVI-D70 PTZ Camera Half-Recessed System

Satisfaction Guaranteed!
Manufacturer SKU: 999-2304-000
Regular Price: $2,295.00
Instant Savings: -$229.50
Quantity: $2,065.50
0 out of 5 based on 0 ratings.

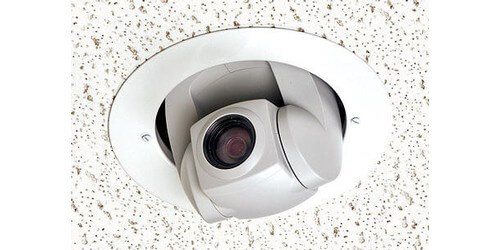

The CeilingVIEW 70 PTZ by Vaddio is a complete, half-recessed, ceiling-mounted pan/tilt/zoom camera system. The system features a Sony EVI-D70C/W camera mounted into a recessed, metal ceiling camera enclosure back box with ceiling tile support braces and the Vaddio EZCamera Cabling System.



It also allows the installer to use Cat. 5 cabling to run power, video and camera control. Included in the Vaddio PowerRite power supply that regulates the right amount of power needed for the camera over Cat. 5 cabling. The CeilingVIEW 70 can be controlled with the IR Remote Commander or with RS-232.

  • Image sensor: 1/4-type EXview HAD CCD
  • Effective Pixels: 768 x 494 (H x V NTSC), 752 x 582 (H x V - PAL)
  • Horizontal Resolution: 470 TV lines (NTSC), 460 TV lines (PAL)
  • Lens: 18X Optical Zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0
  • Total Zoom: 18X Optical x 12X Digital = 216X Total Zoom
  • Horizontal angle of view: 2.7 (tele end) to 48 (wide end)
  • Minimum illumination: 1 Lux (F1.4)
  • Auto exposure: Auto/Manual/Priority AE, Exposure compensation, Back-light compensation
  • Shutter speed: 1 to 1/10,000 s
  • Gain Auto/Manual: (-3 to +28 dB, 2 dB steps)
  • White balance: Auto/ATW/Indoor/Outdoor/One push/Manual
  • S/N ratio- More than 50 dB
  • Pan/tilt Pan: 170 (Max. speed: 100 /s), Tilt: -30 to +90 (Max. speed: 90 /s)
  • Position preset: 6 positions
  • Picture effect: Neg. Art, Black & White
  • Video outputs: Composite Video and S-Video (concurrent on Quick-Connect Box or Quick-Connect 4)
  • Codec Compatibility: In EVI-D30 mode only (within the x/y/z coordinates of the EVI-D30).
  • Power Supply: 15 VDC, 3.33A (PowerRite Power Supply Spec), 100V 240V Switcher
  • For Cat. 5 Power/Video cables over 75' (22.86m), use the PowerRite 18VDC, 2.78A power supply
  • Operating Temperature: 32 to104 F
  • Storage Temperature: -4 to +140 F (-20 to +60 C)
  • Dimensions Backbox: 2.625" Tall x 8.75"W x 8.75" D Weight 7 lbs
