Pop Up AV Table Box with 1 AC, 1 HDMI, 1 VGA, 2 Data, 1 USB

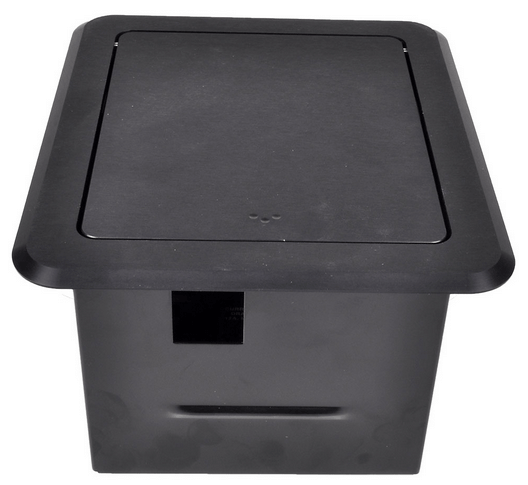

The FSR TB-IPS-KITB is a tilt up table box for your conference room table that when pressed pops up out of the table. The finish is a beautiful black anodized color that looks modern in any room, the housing is all aluminum metal for durability that won't scratch like plastic. The box installs by cutting a 7.25" x 7.18" hole in the table, simply drop it in and secure to the underside with the included brackets and thumb screws. After installed and closed the unit lays flush with the table, the beveled edges make it look even more flush with the table. When you are ready to use simply press the top and the spring automatically pops the top open to a 35 degree angle showing your connections.
The kit includes the following connections: 1 power with 9' cord, 1 HDMI, 2 RJ45, 1 USB-A, and 1 VGA with audio. All connections are female to female except the audio which is solder.
The configuration of this model can be changed to meet your requirements. To request a quote for a different configuration or more connections please call us at 888-999-3759, click here to email us, or via Live Chat.
- Color: Black anodized aluminum
- Connections: 1 power with 9' cord, 1 female to female HDMI, 2 female to female CAT6, 1 female to female 15 pin VGA, 1 female to female USB-A, and 1 female to solder 3.5mm audio
- Tilts open via spring when pressed
- Press down and the unit latches shut flush with the table
- Installs with included brackets and thumb screws that secure to the underside of table
- The unit is modular so connections can be changed in the future as your connectivity needs change
- Bezel dimensions: 7.94" x 7.63"
- Cutout dimensions: 7.25" x 7.18
- Table thickness: .75" to 2.25"
- Depth under table: 4.5"
- Warranty: 1 year
