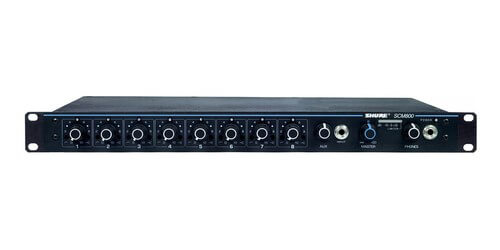

Shure SCM800
8-Channel Microphone Mixer - Adjustable Channel EQ

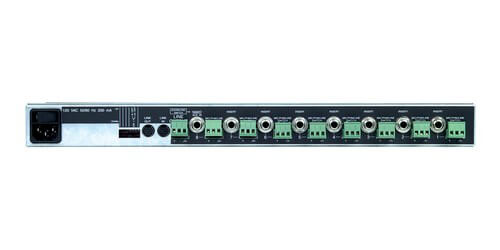

- Inputs: 8 Microphone / Line Switchable Block Connections 1 AUX Input: 1/4" Phone
- Mic/Line Inputs: 8 Microphone / Line Switchable Block Connections
- Inserts: 8 - 1/4" TRS Phone
- BUS (Group) Outputs: Stereo Output
-Brandon K.
Description
The Shure SCM800 is a feature rich, 8-channel microphone mixer for sound reinforcement with adjustable EQ per channel. In addition to being designed for sound reinforcement this mixer is also great for general audio recording, and audio visual systems. Equally any low-impedance, balanced dynamic or condenser microphone, including a wireless microphone system, can be used with the SCM800 mixer. The SCM800 will accept up to 8 microphone or line level inputs and one aux-level input (two input jacks feed the same channel) and up to four SCM800 mixers can be linked together to provide up to 32 input channels for larger applications. Each input channel has a two-band equalizer, switchable microphone or line level operation, switchable 48V phantom power, and a 1/4" send/receive insert jack.
Primary Features of the SCM800:
- Compatible with Shure SCM810 and FP410 automatic microphone mixers
- Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
- 48 V phantom power selectable for each input
- Active balanced microphone- and line-level inputs and line-level output
- Highly RF-resistant chassis and circuitry
- LED indication of channel clipping
- Linking capability for systems up to 32 microphones
- Two Aux-level input jacks that feed one channel
- Insert jack on each channel
- Manual mixing of input channels
- Front-panel headphones output with level control
- Peak-responding output limiter with selectable thresholds and LED indicator
Specifications
- 2 Trk Master I/O: Block Connector
- ALT I/O: Link Out / Link In
- Monitor Outputs: Headphone Output: 1/4" TRS Phone
- EQ Section: Low Cut Filter / High Pass Shelving
- Channel Level Control: Rotary Control Pots
- Trim/Gain Control: Rotary Control Pots
- Phantom Power: 48V DC
- Metering: Peak LED Metering
- Frequency Response: 50Hz to 20kHz
- Signal-to-Noise Ratio: Equivalent Input Noise: -125 dBV (150 source
- through 400Hz to 20kHz filter)
- Dimensions: 1.75 x 19.01 x 12.48" (HxWxD)
- Weight: 9.57
- Warranty: 1 Year
