8x4 HDMI/VGA Matrix Switcher w/ HDMI/HDBaseT Out & iPad Control

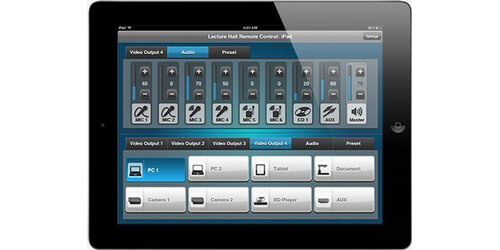

The Roland Pro A/V XS-84H is a multi-format 8x4 matrix switcher that is ideal from conference rooms to live events. The most desired feature is the free XS-80H iPad app, this lets you take control of your XS switcher remotely. You can switch video and audio inputs, volume levels, and change presets, names, icons, and much more. The XS-80H Remote app is a users dream without the high cost of programming and purchasing a touch panel, the app can be downloaded here. USB WLAN adapter required and purchased separately.

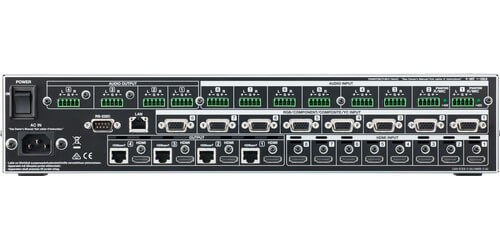

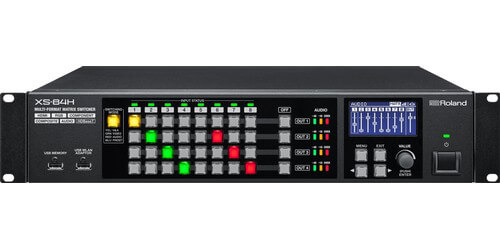

The Roland XS-84H can handle both your digital and analog needs, choose any combination of 8 HDMI or 8 VGA inputs. You can then output these via any combination of 4 HDMI or the 4 HDBaseT outputs, the HDBaseT can send your video, audio, and RS-232 up to 328' over Cat5e/6 cabling. Each input can individually be scaled to your choice of resolution, each output can be in your chosen format. Not only can you control the matrix via the iPad app but also RS-232, and the front panel. The front control panel allows for complete control and the large LCD screen shows exactly that is happening with your distribution.
The XS-84H also goes beyond just a standard matrix and features some very usable effects such as; cut, PIP, vertical and horizontal flip, and 90 degree rotation. Integrated EDID ensures that your displays get the correct resolution, seamless switching even with HDCP enabled happens within .2 seconds so there is no wait. The XS-84H also provides 4K mode which means you can switch 4 video lines as a group.
The internal audio mixer enables switching and mixing of audio inputs with EQ and dynamics processing on every input. Audio mixes can be created from both analog audio inputs as well as embedded HDMI audio inputs. The resultant mix can be embedded back into the HDMI/HDBaseT output as well as analog audio outputs. Also included is 2 internal microphone inputs with ducking that allows you to have the mic automatically mixed above the other inputs. Audio follows video capabilities are also available enabling audio switching coordinated with video switching. Each audio output has a 4-band equalizer, gate, compressor and delay for proper lip-sync. It also features down-mixing function which makes output to a ceiling speaker possible.
The switcher features internal memory for still images, you can now switch to that image or use that image in standby mode when no inputs are connected. Multi mode is ideal for conferencing which allows you to have two windows in one screen. Cross dissolve transition allows for preview sizing guide for confident operation for live events.
The Roland XS-84H is ideal for your audio video distribution but also has the benefits needed for live video in churches, events, and conventions.
New version 3 control software and product features now shipping January 2016:
-Dedicated XS-80 RCS PC and Mac remote control and set-up software facilitates settings on-line or off-line
-Enhanced PGM/PST MODE and DISSOLVE MODE
-Output link function and double tap mode of transition operation which enables the ability to switch two output buses simultaneously
-Remote control of an external device via HDBaseT
-Capturing a still-image from a live video source and using it as an input source
-Bezel compensation function that improves the precision of displaying one picture across multiple screens
-Output freeze function that temporarily pauses the output video
- 8x4 multi-format matrix switcher
- Inputs: 8 HDMI, 8 VGA
- Outputs: 4 HDMI, 4 HDBaseT
- Input and output max resolution: WUXGA or 1080P
- Effects: Cut, PIP, vertical and horizontal flip, 90 degree rotation
- Supported Input: 4K (1920 1200/60Hz)
- Chroma Subsampling: 4:4:4 (Y/Pb/Pr), 10-bit
- Integrated scaling for inputs with your choice of resolution output
- Integrated 16 channel stereo digital audio mixer
- 2 mic inputs
- High speed HDMI switching
- Preset switching
- Control: Remote iPad, RS-232, front panel
- HDCP compliant
- Warranty: 1 year
- Dimensions: 18 15/16" x 13 3/16" x 3 1/2"
- Weight: 11 lbs 11oz
- Includes: Power Cord, captive screw connectors, rubber feet, rack ears
