6X3 Matrix Presentation Seamless Switcher and 2K Scaler with PIP

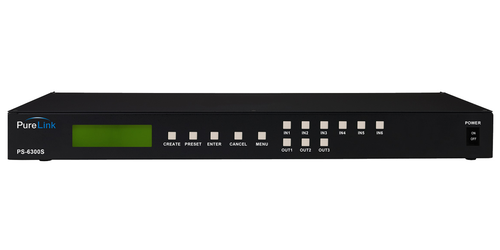

The PureLink PS-6300S is a 6x3 video matrix multi-format switcher and scaler. The inputs consist of 4 HDMI and 2 DVI-I, the outputs are 2 HDMI and 1 DVI-I. All outputs can be scaled up to 2K and provide fast and seamless switching for a high-end presentation. There is even Picture In Picture (PIP) so 2 windows can be displayed on 1 screen. EDID management is automatic to provide optimal resolution with a seamless connection to your monitors.
Also integrated is a 4x3 balanced/unbalanced audio matrix router, the 4 inputs can be mixed with any video source to produce a new HDMI output with embedded audio. There are 3 individual audio outs and one S/PDIF that can be used to to be sent to an external source.
The PureLink PS-6300S is a jack of all trades and can be your one solution for matrix switching, scaling, format converting, and an audio DSP in one affordable presentation switcher.
- Inputs: 4 HDMI, 2 DVI -I
- Outputs: 2 HDMI, 1 DVI -I
- Integrated 2K scaler
- 4x3 balanced/unbalanced audio matrix router
- Audio in: Mix with any source for HDMI embedded out
- Audio out: Digital HDMI to analog extraction
- PIP, 2 windows can be displayed on 1 screen
- DVI-U: Universal supports both analog and digital
- HDCP compliant
- HDMI v1.3
- Advanced EDID management
- Control: RS-232, LAN, front panel
- Dimensions: 19"(W) x 8.0"(D) x 1.75"(H)
- Weight: 6.7lbs
- Includes: Rack ears and power supply
- Warranty: 3 years
