10x2 Modular Presentation Switcher, Dual HDMI, Ethernet, RS-232, USB
PS650 - 10 X 2 Modular Digital Presentation Switcher with Two HDMI Outputs & Stereo Line Out
Featuring the PS650 10x2 Modular Presentation Switcher Enclosure that features 10 available Input Card Slots (Input cards must be purchased separately) and two independent HDMI outputs. This completely customize-able Modular Digital Presentation Switcher from Presentation Switchers Inc. will support a wide variety of both analog and digital source devices to be output between two HDMI outputs up to 4K/30 at speeds of 3.2Gbps/channel. Thus providing users an exceptional platform from which they can completely provide for their current system needs, while at the same time future proofing their entire installations for field expansion and modification at a later date. Making this design concept a benefit for the end user as well as systems integrator's. By choosing a system with virtually limitless expansion possibilities both installers and end users benefit from a device that offers long term expansion opportunities.
Customize Now, Future Proof for the Unknown
As a completely flexible system the PS650 supports a wide variety of digital and analog signal formats including HDMI, VGA, DVI, DisplayPort, Composite, Component, and HDBaseT. In the future, as technologies advance, the PS650 can be field upgraded to support newer technologies with a simple upgrade of input and output boards.

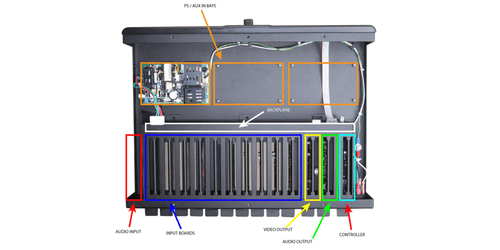

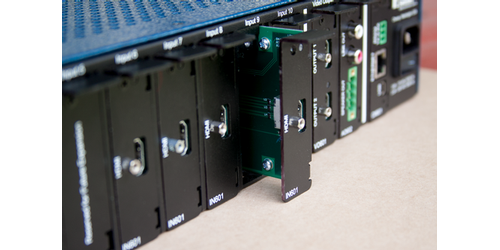

The PS650 Digital Presentation Switcher, offers backward support for analog source devices where analog signals get converted to digital signals. This makes it so users can upgrade their display technologies to higher resolution screens, while at the same time supported a wide range of both current and older source devices. Another amazing feature is that the PS650 enclosure (system) is 100% field upgrade-able. End users can add or subtract cards as they see fit, all on the fly without unnecessary downtime for the customer. For control of the unit, Presentation Switchers Inc has provided a simple user friendly, One-Touch source selection on the front panel of the unit, with LED indicators located above each button to quickly identify the active selected source.
In regards to Audio capabilities the PS600 Series has provided a strong foundation to cover basic audio necessities. These audio features consist of volume control via a rotary digital knob on the front panel or via Ethernet, RS-232, or USB to adjust the speaker-level outputs or to adjust line level audio output in a "pre-amp" mode. If users need sound-reinforcement there is a optional integrated 100W Class D amplifier to aid in powering local speakers. In addition the PS650 provides a way for the audio inputs to be adjusted to temper or attenuate "hot" signals to a nominal level via front panel adjustments. This has been put in place to allow for varying degrees of audio found in -10dB (pro-audio formats) to 4dB (consumer formats). In addition a line level audio output has been provided for video conference feeds or when audio needs to be routed to a mixing board. Using the front panel settings, the output levels of the line out can be fixed or can vary depending upon the volume controls of the PS650 presentation switcher.
Wide Range of Common Use Applications

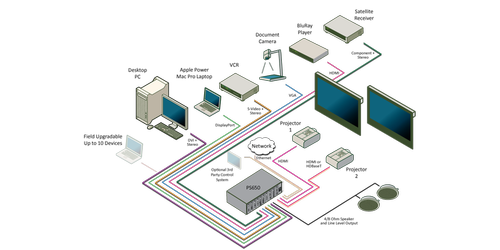

The PS600 is designed for larger presentation spaces like lecture halls, large conference rooms, and briefing centers. The greatest value differentiator of the PS600 series is a the ability of the product to morph and change with each installation. Frequently, universities and corporations make capital investments in meeting spaces only to find that the user’s equipment has changed. This system allows users to cover all their bases and handle any future concerns all at an extremely cost effective solution.
The PS600 Series of Presentation Switchers comes with a variety of inputs and output options. We are here to help get you the configuration you need! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.
- System: 10x2 Modular Presentation Switcher Enclosure

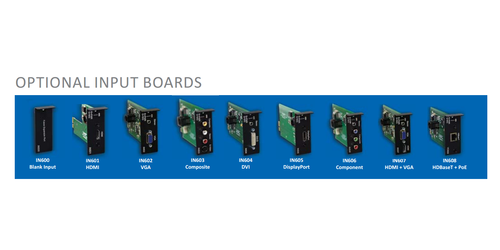

- Available Inputs (Purchased Separately):
- IN601 - HDMI
- IN602 - RGBHV / VGA + Stereo
- IN603 - Composite Video + Stereo
- IN604 - DVI-D + Stereo
- IN605 - DisplayPort
- IN606 - Component or YPbPr + Stereo
- IN607 - Auto-Switching HDMI and VGA + Stereo
- IN608 - HDBaseT with PoE
- Additional Specs:

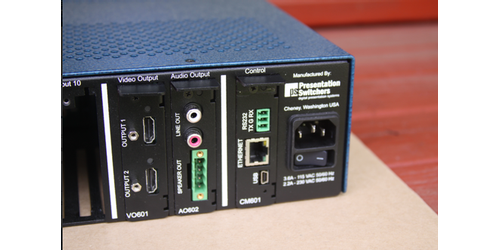

- Outputs: 2 HDMI Type A, female, 3 Gbps per color, 300 MHz, Stereo Line Out
- Optional Outputs: HDBaseT, 100W Amp Out, Audio Line Out
- Control Ports: Ethernet: Shielded RJ45, female, RS-232: DB-9, female, USB: Mini, Type B Ethernet Data Rate: 10 or 100 MBit, Auto-Selected
- Control Port Indicators: 2 LEDs: 1 Link, 1 Activity
- Resolutions: Up to 4K/30
- HDCP 1.4 Compatible
- Controls: One-Touch Front Panel, RS232, Ethernet, and USB

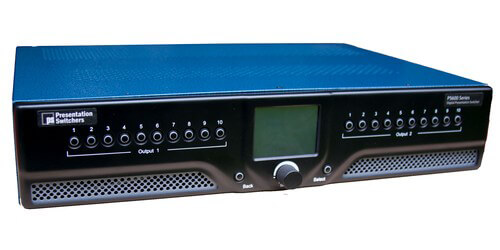

- Front Panel Controls: 10 Input Select buttons, Volume Control/Menu Knob, Back Button, Color Touch Screen
- Certifications: CE, RoHS
- Power: 3.6A / 115VAC, 2.2A / 230VAC
- Dimensions (HxWxD): 3.5" x 17.5" x 12"
- Weight: 14.25 lbs fully populated
- Warranty: 3 Years, Parts & Labor
