PS510

Modular 4 Input Multi Format Auto Switcher, Mirrored HDMI, VGA Out

Satisfaction Guaranteed!
Part #: PS510
Regular Price: $1,195.00
Instant Savings: -$61.00
Quantity: $1,134.00
Quantity Pricing
1-2
$1,134.00
3-8
$1,099.98
9+
$1,065.96
0 out of 5 based on 0 ratings.

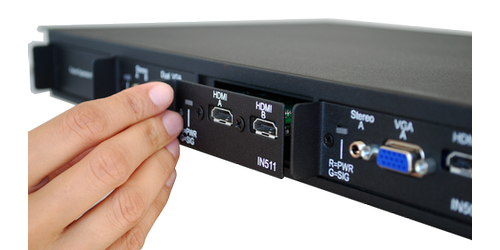

The Presentation Switchers PS510 is a modular switcher where you can add in your desired input cards. A modular switcher is a great choice when you only want to pay for your current input needs but have the ability to add more cards for future needs or new technologies that come out.  The PS510 is also an auto switcher, it will always detect the last plugged in signal and auto switch on the HDMI out.  Not only does it have an HDMI out but it also has a VGA output that mirrors the HDMI output, this is ideal for connecting legacy devices.  There are many input connections that can be purchased separately for your own custom application, choose from HDMI, VGA, DisplayPort, component, composite, S-Video, and DVI. The input cards are even hot swappable for easy in the filed upgrades.

The PS510 also is a scaler, all inputs are automatically scaled and the audio is converted to digital and embedded on the HDMI out.  The PS510 has your audio needs covered as well with features such as audio input level adjustment so you can adjust your audio levels to be the same level, there is also a line level output to send your audio to an external source.

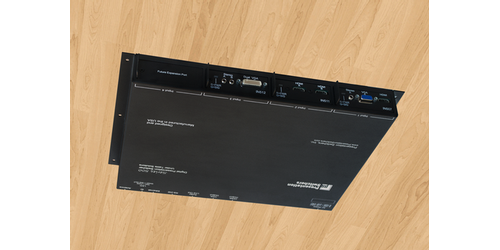

The PS510 is easy to install with no custom programming needed, just insert your input cards and you are done.  The PS510 includes a handy under table mounting bracket for easy installation under a table, the PS510 features LED lights for easy diagnostics and troubleshooting.  The PS510 can automatically power on and off your display when an input is connected via RS-232 connected to the display.

*The PS510 is modular, the input cards are not included and must be purchased separately under the accessories tab.  The HDMI and VGA outputs are included.

  • Inputs: Any combination of (sold separately) HDMI, VGA, DisplayPort, component, S-Video, composite, and DVI
  • Outputs: 1 HDMI, 1 VGA (mirrored)
  • Control: Ethernet or RS-232
  • Auto sense switching
  • Resolution: Up to 1080P
  • Line level output
  • Audio input level adjustment
  • EDID pass through
  • HDCP compliant
  • Dimensions: 1 3/4" x 14 3/8" x 10 1/2"
  • Weight: 5.0lbs fully populated
  • Warranty: 3 years
