Presentation Switchers
IN606

Component + Stereo Audio Input Card, High-Resolution 1080p

Satisfaction Guaranteed!
Part #: IN606
Your Price: $245.00
Quantity:
Quantity Pricing
1-2
$245.00
3-8
$237.65
9+
$230.30
0 out of 5 based on 0 ratings.

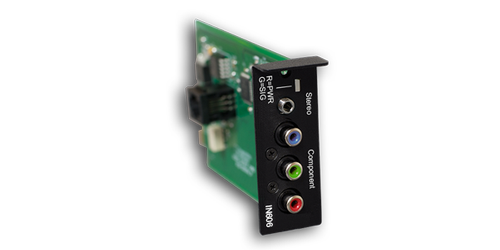

The IN606 from Presentation Switchers is a quality made Component Video plus Stereo Audio Input Board Assembly, that is compatible with all PS600 Series Modular Presentation Switcher Enclosure Systems. This component video input card is used to connect audio-visual devices using the Y, Pb, Pr (Component, RGB High Res) and RGB (RGB/NTSC/PAL) standards.

The IN606 Modular Input Board Assembly for High Speed Component Video Devices Features:

  • RGB High-Res Component or Baseband NTSC, PAL, SECAM
  • Resolutions: 525i, 625i, 525p, 625p, 720p, 1080i, 1080p
  • Supports 720p at 24 Hz/25 Hz formats
  • Macrovision copy protection detection on component formats (525i, 625i, 525p, and 625p)
  • Samples stereo audio and injects into digital video output stream
  • Built-in ESD Protection
  • Field Upgradable, Modular Assembly
  • LEDs for Power and Signal Detection

INSTALLATION

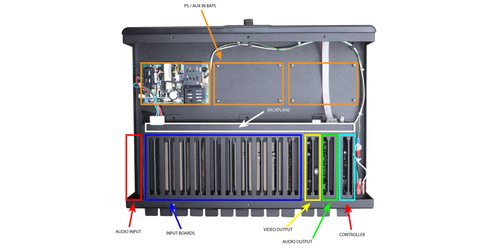

Installation is quick and painless. UNPLUG THE POWER CORD ATTACHED TO THE ENCLOSURE. Simply remove the single mounting screw that holds the IN600 Future Expansion Plate or other card where you plan to install the IN606. After removing the old plate, insert the new IN606 assembly. Replace the screw and reattach the power cord. The system automatically recognizes the new board installed so no further activity is required. However, in some cases, it may be necessary to adjust the audio trim to level the input amplitude to a nominal level. See the Installation Manual for more details regarding audio adjustments.

  • Video Input Specs:
  • Input: RCA, YPrPb (Component), female
  • Format: RGB High-Res Component or Baseband NTSC, PAL, SECAM
  • Resolutions: 525i, 625i, 525p, 625p, 720p, 1080i, 1080p
  • Supports 720p at 24 Hz/25 Hz formats
  • Macrovision copy protection detection on component formats (525i, 625i, 525p, and 625p)
  • Gain: Unity
  • Voltage: up to 1.00 V
  • Impedance: 75 Ohm
  • Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input, and White = Signal selected)
  • Audio Input Specs:
  • 1 3.5mm, Mini Audio Jack (TRS), unbalanced stereo, female
  • Gain: +6 dB
  • Freq Resp: 20 Hz to 20 kHz, +/- 0.05 dB
  • THD+N: 0.01% @ 1 kHz at nominal level
  • S/N: > 90 dB at Vin = 0 V, A-Weighted
  • Crosstalk: < -45 dB @ 20 kHz, -70 dB @ 1 kHz or below
  • Separation: > 90 dB @ 20 Hz to 20 kHz
  • Impedance: > 10k Ohms unbalanced, AC coupled
  • Nom Level: -10 dBV (316 mVrms)
  • Max Level: -6 dBV (500 mVrms), unbalanced at 1% THD+N
  • Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input)
  • Certifications: CE, RoHS
  • Built-In ESD Protection
  • Dimensions (HxWxD): 3" x 1.2" x 6"
  • Weight: 0.5lbs
  • Warranty: 3 Years, Part and Factory Labor
