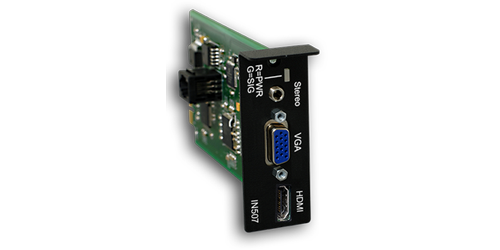

HDMI and VGA Input Board for PS510
The Presentation Switchers IN507 is an input card for the PS510 modular 4 input auto switcher. The card features 1 HDMI, 1 VGA, and 1 stereo audio connection. The connections automatically switch to the last plugged in input and switch on the HDMI out with embedded audio. The VGA is automatically scaled and converted on the HDMI output. The card is easy to install and is even hot swappable making for quick changes in the field.
- Inputs: 1 HDMI, 1 VGA, 1 audio
- HDMI V1.3 Compliant with Deep Color
- Scales up to 1080P
- HDCP compliant on HDMI out
- Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
- Converts analog audio in to digital audio embedded on HDMI out
- EDID pass through
- LED indicator light
- Dimensions: 3.0" x 1.2" x 6.0"
- Weight: .50lbs
- Warranty: 3 years
