PTZ Optics PT-TEAM-VCS
Video Collaboration Kit

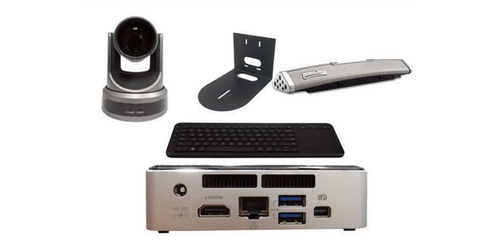

The PTZOptics TEAM Video Collaboration Solution (VCS) PT-TEAM-VCS, is a high-quality easy to install kit that has been designed to provide an amazing all in one solution for video conferencing, live streaming, webinars and group idea sharing. This affordably priced kit comes out of the box with: PTZ Optics 12x-USB 3.0 1080p Camera, the Voice Tracker II from Acoustic Magic, a highly compatible Quick Launch Command Software Software, Intel's NUC i5 Processor, Microsoft's All-in-One Media Keyboard, a Small Universal Wall Mount for the Camera, and a C2G 6' HDMI Cable. Virtually everything you need in one box to change over your normal conference room (with existing LCD screen) into a super efficient, video conference / group collaboration environment.

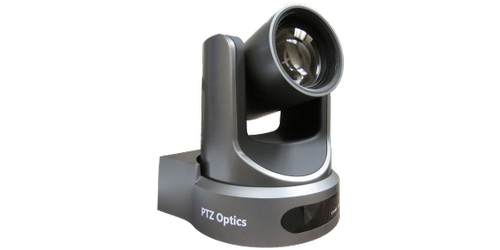

This Team Video Collaboration Solution has been built to accommodate small to medium sized conferences. With that, the first unit in this kit is the PTZOptics 12X-USB that offers crystal clear 1080p 60 FPS quality resolutions, 72.5 degrees field of view, and is compatible with most meeting software such as Adobe Connect, Google Hangouts, Cisco Webex, Zoom us, and many more. To mount this stylish camera a small universal wall mount has been included that allows cables to be run under, above, or through the mount depending on your application.

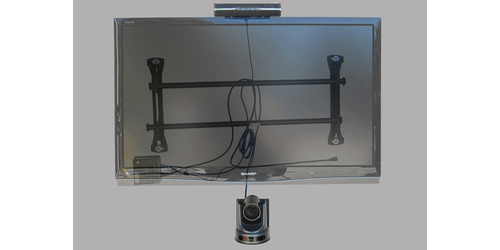

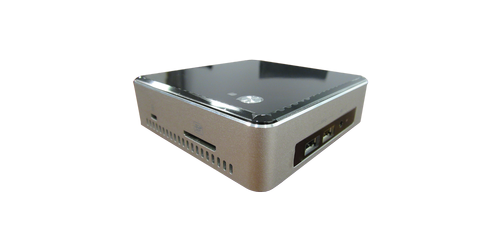

To run, control, and stream your video and group collaboration meetings, PTZ Optics has included the tiny, yet powerful Intel NUC Micro PC which is ready for installation with included hardware to mount safely and out of site, behind your flat panel display. The Intel NUC comes pre-installed with Windows 10 Professional, it has a 6th Generation i5 processor, 250GB SSD, and 16 Gigs of ram. With this computer you can be confident this device will virtually work with all the latest web based collaboration software and most live streaming applications. For control, this system ships with a built-in Quicklaunch Meeting Room Software. This software is a highly compatible command software that has the ability to keep your applications organized and secure. It gives users the ability to start or join meetings with the touch or click of a button. It features a “reset room” button that restores the meeting room devices to a clean state; removing sensitive files such as cache or temporary files sent from other users.

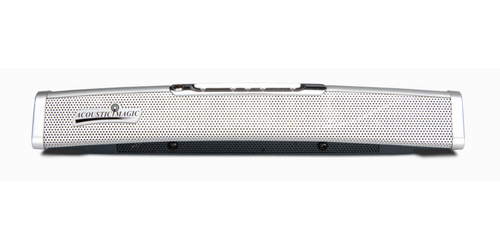

Finally since your all ready being seen, and controlling your group collaboration, the next step is to make sure everyone participating in your team video meeting, is that they are being heard crisply and clearly. With that this kit includes the Acoustic Magic Voice Tracker II, with 6 built-in beam forming microphone array. This Voice Tracker II offers a fantastic pickup range of 20' (depending on the acoustics of the room) and it is powered through USB so only one cable is required. The 6 "listening beam" mics will shift direction depending on where the speaker is talking to ensure the highest quality audio pick up. Additionally it features Acoustic Magic's AEC (Acoustic Echo Cancellation), that is designed to block out ambient noise and only pick up the speaker, allowing for uninterrupted full-duplex communication between 2 lines.
- Team Video Collaboration Kit:
- PTZ Optics 12X USB Camera - 3 Year Warranty
- Acoustic Magic Voice Tracker II - 1 Year Warranty
- Intel NUC i5 Micro PC - 3 Year Warranty

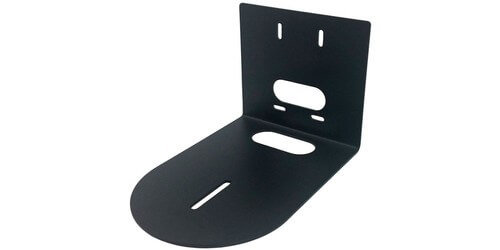

- Small Universal Wall Mount for PTZ Camera - 3 Year Warranty

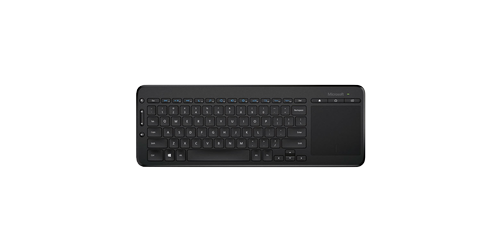

- Microsoft All-in-One Keyboard w/ Multi Touch Trackpad - 1 Year Warranty
- Quicklaunch Command Software: Includes Apps like Skype, WebEx, BlueJeans, Google Meetings etc
- C2G 6'HDMI Cable

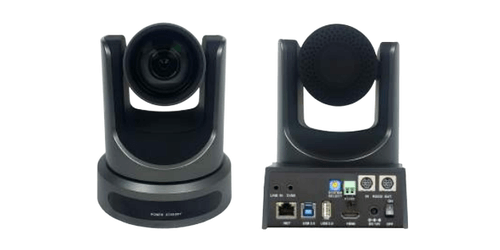

- PTZ Optics 12x USB Camera Specs:
- Zoom: 12X optical, 16x digital
- Field of View: 72.5 degrees
- Connections: HDMI, USB 3.0, RJ-45 IP H.264 streaming (all 3 simultaneous)
- Resolution: 1080P
- Pan 170 degrees, Tilt up 90 degrees and down 30 degrees
- Color: Gray
- Lens: F3.5mm-42.3mm, F1.8-F2.8
- Control: RS-232, web browser, free Android app, IR remote (included)
- Presets: 255
- Audio: 3.5mm input
- For Additional Specs Please Click Here(PDF) Intel NUC Micro PC
- OS: Comes Pre-installed with Windows 10 Professional
- CPU: 6th Generation i5 Processor (1.9 GHz with turbo capability to achieve 2.8 GHz, Dual-Core processor with 4 MB smart cache)
- Mini DisplayPort: supporting DP 1.2 HDMI port supporting HDMI 1.4b for dual display capability
- Capacity: 250GB SSD | 16Gb RAM
- Dual Front and Back Panel USB 3.0 Ports
- AC-WiFi / Bluetooth 4.1
- Power: 19 V, 65 W DC power connector
- For Additional Specs Please Click Here(PDF) Voice Tracker II Specifications:
- Range: 20'
- Microphones: 6 Beam Forming Microphone Array
- Primary Audio Output: USB
- Sample rate: 48KHz
- Power: USB Powered / 5V DC, 400mA
- Mute Mode
- For Additional Specs Please Click Here(PDF)
