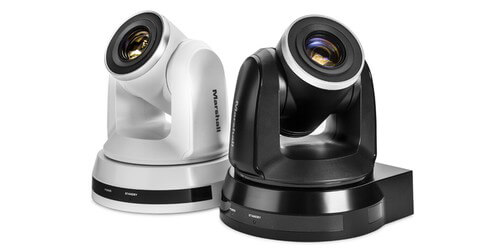

Marshall CV612HT-4KW
4K PTZ Camera, HDBaseT, HDMI, 12x Optical, Digital Zoom
- Color: White
- Ports: Kensington Lock Port, HDBaseT, HDMI Output, DC 12V Input, IR Select, Output Switch, Camera Address Selector, RS-232 Input/Output, RS-422
- Sensor: 1/2.3" 9MP CMOS
- Video Output: Up to 3840 x 2160p @ 29.97 / 25 fps, 1920 x 1080p @ 59.94 / 50 fps, NTSC / PAL
Description
Featuring the Marshall CV612HT-4KW UHD 4K White PTZ Camera with HDBaseT and HDMI ports, as well as 12x Optical and 12x Digital Zoom. This camera has a very smooth simultaneous Pan-Tilt-Zoom function and is built with a professional grade 4K UHD 9 megapixel 1/2.8" sensor. To receive uncompressed 4K UHD (Ultra High Definition) video, PoE (Power over Ethernet), and command control to the camera the user can connect a single Cat 5e/6 cable.

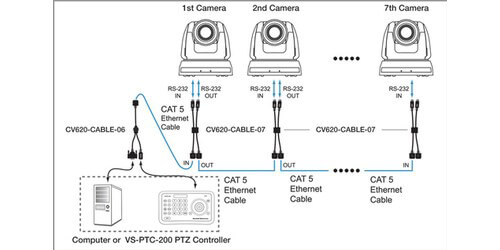

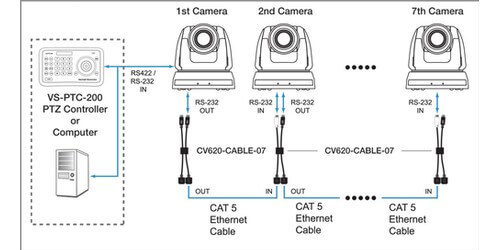

To control this camera, the user can remotely operate the unit by way of RS-232/422 using common protocols that make it compatible with most integrated control systems. With broadcast adjustable settings such as white balance, auto/manual focus, gain control, exposure control, and other operational adjustments to provide more flexibility. Ideal applications for this camera include remote confidence monitoring, education, corporate, healthcare, worship, music, courtroom, entertainment, government, and a wide variety of workflows in broadcast studios.
Specifications
- Optical & Digital Zoom: 12x
- Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080P:24x)
- Video Output Interface: HDBaseT, HDMI simultaneous
- Horizontal Viewing Angle: 74 degrees at widest
- Panning Angle: -170 ~ +170 degrees
- Tilting Angle: -30 ~ +90 degrees
- Preset Positions: 128 savable
- Video S/N Ratio: > 50dB
- Focal Length: f = 3.9mm~46.8mm
- Front Panel Tally Light
- PoH (PoE over Cat6e)
- Camera Control: RS-232/ RS-422, VISCA, PELCO D
- Image Flip / Joystick Flip: Yes
- 3D NR: Yes
- Weight: 4.4 lbs.
- Dimension (HxW): 7.35 x 6.85"
