Liberty AV IPEX2001

HDMI over IP Encoder Scalable 1080p, Matrix/Video Wall Capability

Satisfaction Guaranteed!
Part #: IPEX2001
Your Price: $630.00
Quantity:
Quantity Pricing
1
$630.00
2-4
$623.70
5+
$617.40
0 out of 5 based on 0 ratings.

The IPEX2001 from Liberty AV is a HDMI over IP Encoder Scalable 1080p solution with full matrix and video wall capabilities. This device works by transmitting HDMI video and audio over a gigabit IP network using h2.64 AVC encoding with a data rate up to 30 Mbps. This device has the ability to support video signals up to 1920x1200 @ 60Hz and outputs video stream: one large IP stream at the native content resolution and a smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad. In addition an analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content. The IPEX2001 when used in conjunction with the compatible IPEX2002 Decoder supports POE and can be powered remotely by a compatible power source equipment, such as a PoE Ethernet switch, thus eliminating the need for a nearby power outlet, adding another layer of flexibility to this system. Encoding control provides adjustments for encoding bit rate and quality. There is an RS-232 port which operates in a pass-through capacity to control a third party device such as a projector.

Primary features for the IPEX2001 include:

  • Transmission of HDMI video and audio over a gigabit IP network using H.264 AVC encoding with a data rate up to 30 Mbps
  • Video Signal support up to 1920x1200 at 60Hz
  • Outputs two video streams: one large IP stream at the native content resolution and one smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad
  • Analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content
  • Supports PoE (with compatible Decoder) or can be powered remotely
  • Encoding control provides adjustments for encoding bit rate and quality
  • RS-232 port operates in a pass-through capacity
  • One complete IPLinx 2000 series system will require the use of one IPEXCB control interface no matter how many encoders / decoders are used

The IPEX2001 requires an IPEXCB control box and is compatible with IPEX2002 and IPEX2003MV
streaming decoders.

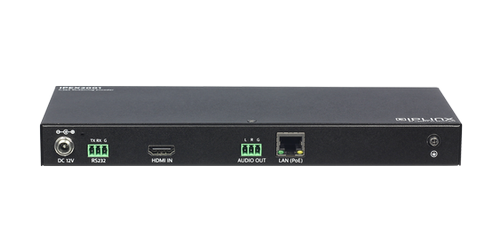

  • Input/Outputs: HDMI Type A, LAN 8P8C, Power, RS-232 Port 3-pin terminal block, Audio Output 3-pin
  • Video Resolutions: SMPTE up to 1080p and VESA up to 1920x1200
  • Color Depth: 24, 30, 36 bit
  • Video Compliance: HDMI 1.3 and HDCP 1.3
  • Embedded Audio: PCM 6 Channel, Dolby Digital, and DTS
  • Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Maximum Streaming Signal Distance: 328'
  • Cable Requirements: Cat-5e or greater with TIA/EIA-568B crimp pattern
  • Encoding Data Rates: 64Kbps to 30Mbps
  • Encoding Method: CRB or VBR
  • End to End Latency: Low Quality Mode: 79 ms / High Quality Mode: 250 ms
  • Maximum Supported Encoders: 999
  • Maximum Video Wall Size: 16 x 16
  • Chassis Construction: Black Steel
  • Dimensions (H x W x D): 0.98" x 9.33" x 3.71"
  • Power Input: 12V DC 1A or 48V DC PoE (Power over Ethernet)
  • Power over Ethernet Compatibility: 802.3af Alternative A
  • Power Consumption: 6 watts
  • ESD Protection: 8kV air, 4kV contact
  • Regulatory: FCC, CE, RoHS

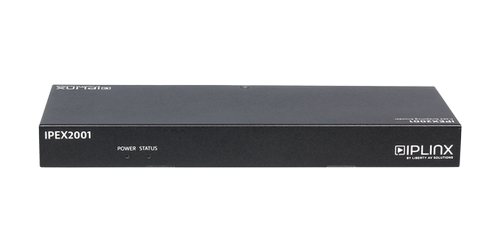

  • Diagnostic Indicators: Power and Status
  • IP Controller: IPEXCB
  • Compatible Decorders: IPEX2002 & IPEX2003MV
  • Included Accessories: Installation Guide, Power Supply with US, UK, EU and AU adapters, 3-pin Removable Screw Terminal (2 ea), Mounting Ears (2 ea)
  • Warranty: 2 years
