Liberty AV EDU-KIT-001

Classroom or Conference Room A/V Distribution & Control System

Satisfaction Guaranteed!
Part #: EDU-KIT-001
Regular Price: $1,599.00
Instant Savings: -$159.90
Quantity: $1,439.10
Quantity Pricing
1
$1,439.10
2-4
$1,424.71
5+
$1,410.32
0 out of 5 based on 0 ratings.

The Liberty EDU-KIT-001 is an all-in-one solution designed for K-12 classrooms and conference rooms to offer everything you need in one easy to set up and use package. The kit consists of the wall plate transmitter, wall plate control panel, and the receiver/processor. You can send power, control, and audio and video up to 1080p over single (98 ft) Category 6A cable between the wall plate transmitter and the receiver. The wall plate control module connects to the wall plate transmitter with a second Category 6A cable. All the power needed for the system is provided by the receiver. Additionally, the receiver features a built-in web GUI for control and analog audio de-embedding to a built-in 2x20 watt stereo amplifier.

The wall plate transmitter features 2 HDMI inputs, they can be auto switched or switched manually. It also has a USB connection to connect a computer or whiteboard, all these connections are sent out a Cat6 cable. The wall plate controller features on and off, mic and source volume control, IR learning, and a single Cat6 out connection. The processor features a microphone input, IR, RS-232, USB, and an HDMI out with separate audio out. The processor also has a a 2x20w 4 ohm integrated amplifier to connect a couple of speakers to, a very nice feature so you don't have to run an external audio system.

The Liberty EDU-KIT-001 is a perfect solution for classrooms, conference rooms, training rooms, or anywhere you want a simple to use yet robust all-in-one control system.

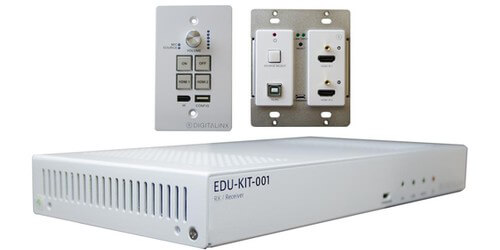

  • Includes: wall plate transmitter, wall plate control panel and receiver/processor

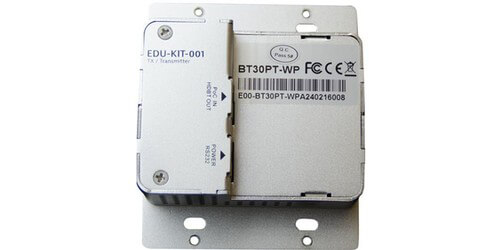

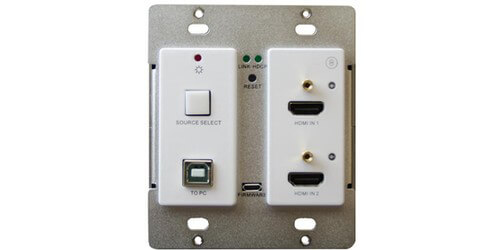

  • Wallplate transmitter features:
  • Two HDMI inputs with automatic or manual switching modes
  • USB-B connection for local PC and interactive whiteboard integration
  • Single twisted pair for data and power

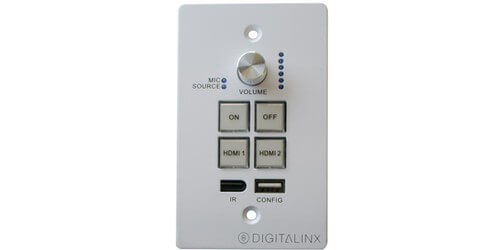

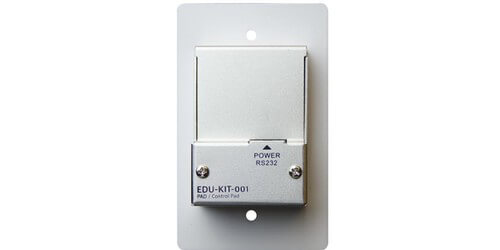

  • Wall plate control panel features:
  • System on/off
  • Mic and source volume control
  • IR learning for controlling connected devices
  • Single twisted pair for data and power

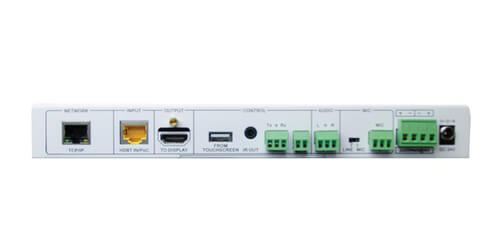

  • Receiver/processor features:
  • Mic/line input
  • HDMI output with audio de embedding
  • IR and RS232 output for display and/or screen control
  • 2x20w 4 ohm amplifier for speaker integration
  • TCP/IP connectivity for system wide monitoring and diagnostics
  • USB-A connection for local PC and interactive whiteboard integration
  • Hardware for ceiling or wall mounting
  • Cat6 Distance: 98'
  • HDMI distance: 16'
  • Compliance: HDMI 1.4, HDCP 1.4
  • Passes EDID
  • 2x20w 4 ohm integrated amplifier
  • Warranty: 2 years
  • Includes: Receiver, Transmitter, Control Panel, Locking Power Supply with Power Cable, USB Type A to Type B Cable, 3-pole to DE9 RS232 Cable, IR Emitter, Two Mounting Rails with Screws, Six Wall Box Screws, Three 3-pole Removable Terminal Blocks, One 2-pole Removable Terminal Block, One 4-pole Removable Terminal Block, Wall Plate for Transmitter, Installation Guide
