Liberty AV DL-S42
4x2 4K30 HDMI Matrix Switch - Audio De-Embedding & IR Control

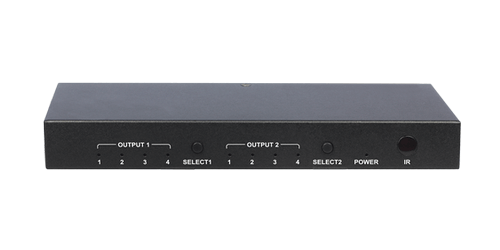

The DigitalLinx DL-S22 is a 4x2 slim HDMI Matrix Switcher with resolution support for Ultra HD 4K. This 4 HDMI input/2 HDMI output matrix is HDCP 1.4 compliant and can handle resolutions up to 4K@30Hz and 1080p at 60Hz. To ensure hassle-free installations, this unit comes with built-in diagnostic LED's. Making this a perfect matrix switcher for smaller applications where users need to output up to 2 different signals from 4 different sources, such as in home use, digital signage, huddle rooms, or smaller business type applications that need HDMI distribution.
The DL-S22 features two advanced technologies; automatic EDID management, which provides copy EDID options for different resolutions output, and HDCP management, which authenticates HDCP encryption between all devices, thus ensuring HDMI sources reliably output correct content for the displays. This matrix switcher will also support CEC control to turn on/off the TV and offers a stereo audio output. For signal routing control, this device uses either an IR remote, or push button controls on the front of the device, and features automatic input signal equalization and regeneration.
- Inputs: 4 HDMI
- Outputs: 2 HDMI
- Supported Resolutions: Up to Ultra HD 4K@30Hz and 1080p@60Hz
- HDCP 1.4 and HDMI 1.4 Compliant
- Analog stereo audio de-embedded from output 1
- IR Remote and Push button controls for Routing
- Automatic input signal equalization and regeneration
- Power Supply: DC 12V, 1A
- Power Consumption: 5W
- Included Accessories: Installation Guide, Power Supply, Mounting Brackets with Screws (Pair), IR Remote
- Warranty: 2 Years
