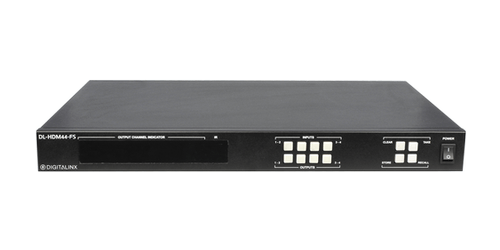

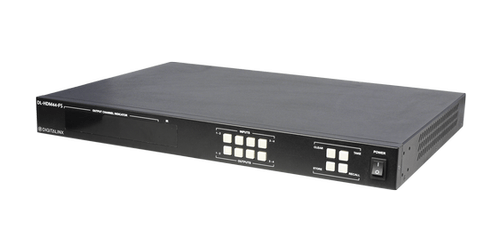

Liberty AV DL-HDM44-FS
4x4 4K30 HDMI Matrix Seamless Switcher - HDCP 2.2
The Liberty DL-HDM44-FS is a 4x4 HDMI matrix switcher with 4K support, the matrix also supports HDMI 1.4 and HDCP 2.2 with resolution support up to 4K@30Hz. There is an integrated scaler that scales various resolutions to match the best video and picture quality across all displays. There are 4 HDMI inputs and 4 HDMI outputs, each output as a de-embedded stereo output that can be connected to an external audio system if desired. The inputs and outputs can be controlled via the front panel, included remote control, IP, IR, and RS-232. Not only will the matrix route your video but it will also embed your HD audio including up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio.
The matrix features advanced independent DIP switch for EDID management. The DL-HDM44-FS offers HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
The Intelix DL-HDM44-FS is an affordable solution for your local 4K distribution needs when you need fast seamless switching.
- 4x4 HDMI 4K matrix switcher
- Inputs: 4 HDMI
- Outputs: 4 HDMI
- Resolution Supported: Up to 4K@30Hz
- Control: Front panel, included remote control, IP, IR, and RS-232
- HDMI 1.4
- EDID management
- Supports: 3D, HDCP 2.2
- Embedded audio: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- Includes: Installation Guide, IR Remote, IR Receiver, Rack Mounting Ears with Screws, US Power Cable, USB to UART Cable, 8) 3.5mm 3pin Phoenix
- Passive HDMI distance: 5'
- Dimensions: 1.69 in x 17.20 in x 12.83 in
- Weight: 4lbs
- Warranty: 2 years
