Home > Auto Switchers -> Multi-Format Auto Switchers -> Liberty AV -> DL-AS31-2H1V 4K30 HDMI Auto Switcher w/ 2 HDMI, 1 VGA w/ Audio Input

Liberty AV DL-AS31-2H1V

4K30 HDMI Auto Switcher w/ 2 HDMI, 1 VGA w/ Audio Input

Satisfaction Guaranteed!
Part #: DL-AS31-2H1V
Regular Price: $399.95
Instant Savings: -$39.99
Quantity: $359.96
Quantity Pricing
1
$359.96
2-4
$356.36
5+
$352.76
0 out of 5 based on 0 ratings.

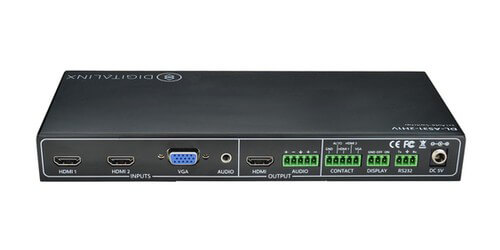

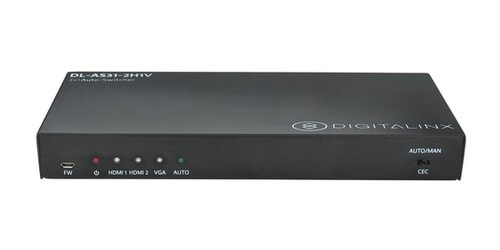

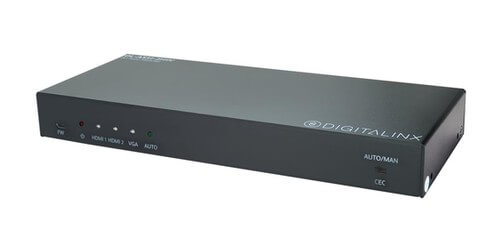

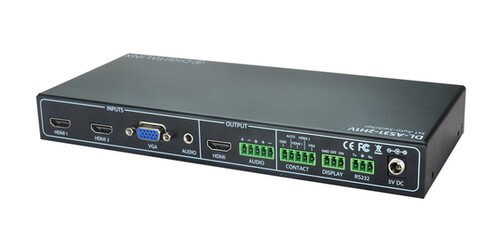

The DL-AS31-2H1V from Liberty AV is a 3x1 multi-format 4K auto switcher that features 2 HDMI input, one VGA w/ Audio Input, one HDMI output, and one balanced analog audio output. This affordable yet high-quality auto-switcher will support HDMI video resolutions up to 4Kx2K at 30 Hz and multi-channel audio and VGA video resolutions up to 1920x1200 at 60 Hz. This device works by, when in auto-switch mode (auto sensing), switching over to a signal input as soon as a new source is detected to the device, conversely if the active source is removed, the switcher will switch back to the first source on the lowest numbered input. It will pass EDID information from the display, and in addition there are multiple built-in EDID settings to help aid and simplify installation. Another nice feature to the DL-AS31-2H1V is that it can de-embed the digital audio from the HDMI output signal, and output the audio via the balanced analog audio output port. Control of the auto-switcher can be controlled via RS-232 commands or by contact closure feature, which allows for remote manual switching override. Making this an ideal solution for use as an under-table switcher for conference tables, integrating legacy components into a digital environment through analog to digital conversion and scaling up to 1920x1200, making it also great in corporate facilities, houses of worship and school/training environments.

The DL-AS31-2H1V is a very affordable easy to use auto-switcher that comes with Installation guide, power supply with AC adapters (AU, EU, UK, and US), RS232 cable, 5-pin terminal blocks (2 ea), 3-pin terminal blocks (2 ea), rubber feet, mounting “L” brackets (2 ea), mounting screws (4 ea), and is backed by a 2 year warranty.



  • Input: 2 HDMI and 1 VGA with audio input
  • Output: 1 HDMI and stereo audio output
  • Resolution Up to 4K@30 on HDMI
  • Max. Video Compatibility: Deep Color 48/36/30/24 Bit at 1080p and 2160p/30
  • Video Compliance: HDMI1.4, HDCP1.4, CEC
  • HDMI Embedded Audio: PCM/Dolby Digital/DTS/DTS-HD
  • Output Audio Signal: Balanced analog audio, compatible with unbalanced analog audio
  • Maximum Power Consumption: 5 Watts
  • VGA Scaling up to 1920x1200
  • Built-in EDID settings and EDID pass-through
  • Built-in audio de-embedding
  • Automatic and manual switching via RS232 and contact closures
  • Power Supply: 100-240V AC @ 50/60Hz
  • Diagnostic LED Indicators: Power, Source Mode, Selected Input
  • Included Accessories: Installation guide, power supply with AC adapters (AU, EU, UK, and US), RS232 cable, 5-pin terminal blocks (2 ea), 3-pin terminal blocks (2 ea), rubber feet, mounting "L" brackets (2 ea), mounting screws (4 ea)
  • Warranty: 2 Years
