Liberty AV DL-1H1V1U-WP-W

2 Gang HDBaseT 2.0 HDMI/VGA, USB 2.0 Transmitter Wall Plate

Satisfaction Guaranteed!
Part #: DL-1H1V1U-WP-W
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

Introducing the Liberty AV Digitalinx DL-1H1V1U-WP-W 2 Gang HDBaseT 2.0 HDMI/VGA, USB 2.0 Transmitter Wall Plate. This 2x1 auto switching transmitter supports long distance transmission of HDMI, VGA and USB 2.0 up to 330' over Cat6 cable (not included). This device gives the user the ability to automatically display video signal whenever it is introduced to the system, with either VGA or HDMI inputs. Another great feature of this unit is its ability to turn display technology off after a specified amount of time passes in which no video signal is detected. It also gives the user the ability to turn the display on and off and manually switch from one input to another from the face plate itself.

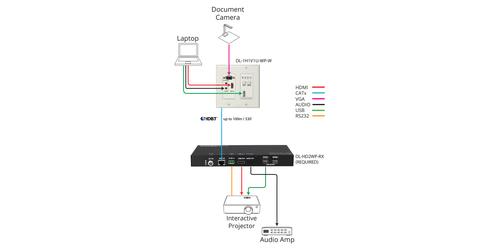

Ideal solutions for this wall plate transmitter include any situation where the user needs to extend USB with either HDMI or VGA for interactivity with items such as whiteboards in classrooms, conference rooms, or training rooms. Other applications include KVM (Keyboard, Video, Mouse), or any setting where the user has a need to extend USB camera, microphone, or AV signals. This DL-1H1V1U-WP-W comes backed from Liberty AV with a two year warranty and is compatible with the DL-HD2WP-RX HDBT 2.0 receiver (not included).

  • Inputs: 1x HDMI, 1x VGA w/audio, 1x USB (Type A)
  • Signal Extension: Up to 330'
  • Resolution: Up to 4K@60Hz 4:2:0
  • RS232 pass through over HDBaseT
  • Front Panel Input and Display on/off Selection
  • Warranty: 2 years
  • *Note From Manufacturer: Requires the use of the DL-HD2WP-RX receiver*
