Lew Electric SWB-1-BP

Single 15A Outlet Floor Box w/ Screw Plug & Back Box - Brass

In Stock!
Part #: SWB-1-BP
Regular Price: $73.00
Instant Savings: -$14.60
Quantity: $58.40
0 out of 5 based on 0 ratings.

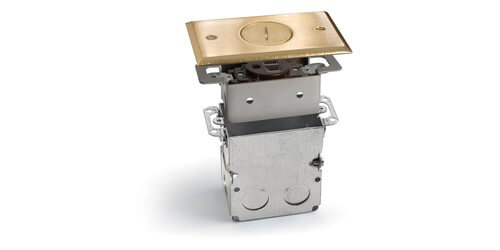

The Lew Electric SWB-1-BP is a floor box that holds (1) 15A tamper resistant power outlet, the top brass plate features one secure access point. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlet are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

To install use the included 2" x 3" box with a 3 1/2" depth.  The box may be attached directly to a sub floor or routed to 3/4" into finished floor. Screws are included to attach the box to the plate.

The Lew Electric SWB-1-BP is an economical solution when you need a small plate with a single power that is easy to install and functions perfectly.

  • Cover plate: 1/8" thick brass
  • One 15A tamper resistant outlet
  • Dimensions: 2 7/8" X 5" X 4"
  • Water tight assembly
  • Outlet UL listing # 498
  • Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
  • Box UL listing # 729A (File # E10866)
  • Installation: Use the included 2" x 3" box with a 3 1/2" depth
  • Includes: Back box, 1/16" neoprene gasket, and installation screws
  • Warranty: 6 months
