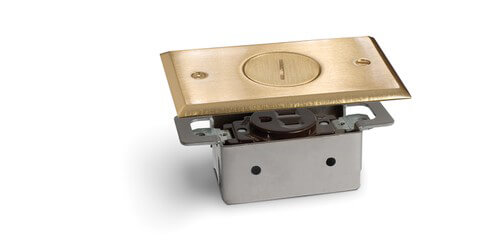

Lew Electric RRP-1-BP
Rectangle Single 15A Outlet Floor Box w/ Screw Plug - Brass
The Lew Electric RRP-1-BP is a floor box that holds (1) 15A tamper resistant power outlet, the top brass plate features one secure access point. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlet are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".
To install you must use a 2" x 3" box with a 3 1/2" depth (not supplied). The box may be attached directly to a sub floor or routed to 3/4" into finished floor. Brass screws are included to attach box to plate.
The Lew Electric RRP-1-BP is an economical solution when you need a small plate with a single power that is easy to install and functions perfectly.
- Cover plate: 1/8" thick brass
- One 15A tamper resistant outlet
- Dimensions: 2 7/8" X 4 5/8" X 1 3/8"
- Water tight assembly
- Outlet UL listing # 498
- Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
- Box UL listing # 729A (File # E10866)
- Installation: Must use a 2" x 3" box with a 3 1/2" depth (not supplied)
- Includes 1/16" neoprene gasket and brass installation screws
- Warranty: 6 months
