Lew Electric RF10C66
4" Raised Access Floor Box w/ Lid, 8 Duplex Power Openings

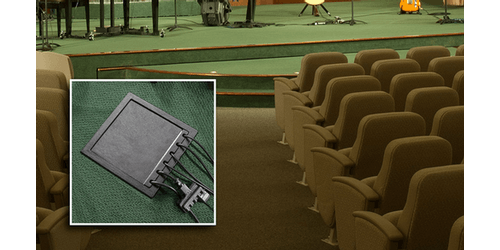

The Lew Electric RF10C66 is a floor box designed specifically for raised floors and stages. Included is a heavy duty cast aluminum black lid, when closed there are 6 gaps for cables to pass through while they are still connected inside the box.
Inside the box you will find openings for 8 duplex power cutouts.
The box is made of a very durable 16 gauge galvanized steel, and the lid features a heavy duty 1/4" thick flange and a 3/4" thick bottom lip. The lid features a 1/4" recess in the top for inserting carpet or tile. There are two knockouts on each side of the box, they can be popped out to accept either 1/2" or 3/4" conduit.
Installing to floor is easy by removing the lid and screwing the flange to the floor, then re-install the lid.
The Lew Electric RF10C66 is an affordable high quality raised access floor box that allows cables to be plugged in with the lid closed.
Inside openings: 8 duplex power cutouts
Lid construction: Black cast aluminum with 1/4" thick flange and 6 cable access holes
Box construction: 16 gauge galvanized steel
Lid dimensions: 11 1/2"L X 11 1/2"W
Box dimensions: 10"L x 10"W x 4"H
4 knockouts, your choice of 1/2" or 3/4
Warranty: 6 months
- Inside openings: 8 duplex power openings
- Lid construction: Black cast aluminum with 1/4" thick flange and 6 cable access holes
- Box construction: 16 gauge galvanized steel
- Lid dimensions: 11 1/2"L X 11 1/2"W
- Box dimensions: 10"L x 10"W x 4"H
- 4 knockouts, your choice of 1/2" or 3/4"
- Warranty: 6 months
