Lew Electric
812-DFB-LRW/2XLR
4" Round Cast Iron Floor Box w/ 2 XLR & Flip Lids - Brass
Part #: 812-DFB-LRW/2XLR
This product has been discontinued
Suggested Replacement:
Top 812-DFB-LRW/2XLR Specifications
- 4" round floor box
- Brass top with 2 flip lids
- Includes 2 XLR jacks
- Box is UL listed # 514A, 489H
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

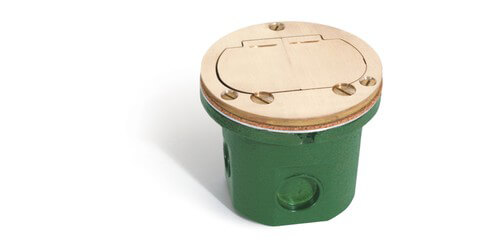

The Lew Electric812-DFB-LRW/2XLR is a 4" round floor box with brass top that includes 2 XLR jacks, the top features 2 flip lids to gain access to the connections. The box is cast iron with a 14.5 cubic inch interior capacity, there are two 3/4" and two 1/2" conduit openings to bring your wire into the box. The box is UL and cUL listed, screws are included to attach the top plate to the box. The box was designed for a wood floor but can be installed in a concrete floor, the box is not recommended for new construction concrete as the box is not adjustable and does not include a temporary cover.
The Lew Electric 812-DFB-LRW/2XLR is a heavy duty versatile floor box that provides convenient access to power.
Specifications
- Box is cUL listed 22.2 #18.1-04
- Conduit openings: two 3/4" and two 1/2"
- Cast iron box material
- Warranty: 6 months
