Kramer VS-88FO

8x8 3G HD-SDI Matrix Switcher, 40KM, Req. 1-8 SFP I/O Modules

Satisfaction Guaranteed!
Manufacturer SKU: 29-80040010
Regular Price: $4,495.00
Instant Savings: -$899.00
Quantity: $3,596.00
0 out of 5 based on 0 ratings.

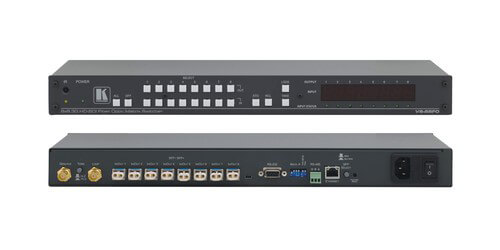

Kramer's VS-88FO is a high-performance 1x1 to 8x8 3G HD-SDI video signals over fiber optical matrix switcher. This device can switch any or all inputs to any or all outputs and is an ideal solution for long-distance operations and installations. With the use of single-mode LC terminals and separately available SFP modules, video signals can be transmitted to/received from up to 24 miles, depending on the type of SFP modules installed, making this a great solution for professional broadcasting and production studios for presentation applications. On-board genlock ensures the video sources remain in sync and can also generate black burst sync signals. For connecting standard BNC equipment the VS-88FO is compatible with Kramer's 690T and 690R transmitter/receivers.

The main features for the VS-88FO is HDTV compatibility a maximum data rate of up to 3Gbps, enabling the device to be used for standard definition, high-definition, and 3G HD-SDI definition serial digital video signals. Depending on the SFP module used this can have a range of up to 40km. It has a single mode SFP SDI fiber optic connector for the input and output, and a looping analog sync for genlock (bi-level and tri-level sync compatible). The VS-88FO also uses automatic reclocking and equalization and has Active Input Reporting where each input button on the front panel automatically lights up when the unit detects a video signal on that input. Red indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal. With Multiple Memory Locations this matrix switcher stores multiple switches as presets (salvos) to be recalled and executed when needed. Vertical interval switching is compliant with SMPTE RP-168. Control of the VS-88FO is very flexible for the user with front panel buttons, RS-232 (with K-router Windows-based control software), RS-485, Ethernet, or an included IR remote.

The VS-88FO comes with a power cord, rack "ears" and IR remote control transmitter, and a 7 year warranty from Kramer.

  • Inputs: 8 single mode/multi mode fiber optic on LC connectors
  • Outputs: 8 single mode/multi mode fiber optic on LC connectors
  • Data Rate: 3Gbps per channel
  • Controls: Front Panel, RS-232, RS-485, Ethernet, IR remote
  • Looping Genlock Input
  • HDTV Compatible
  • Max. Data Output Level: 800mVpp/75 Ohms
  • Optional SFP Modules: Maximum of 4 can be installed, Minimum of 1 is required
  • Range: 2-40km depending on SFP modules installed
  • Selectable Sync Signal Termination
  • Automatic Reclocking and Equalization
  • Active Input Reporting: Each button on the front panel lights up when detected video signal is present
  • Multiple Memory Locations: Stores multiple switches as presets to be recalled and executed as needed
  • Take Button: Executes multiple switches at once
  • Vertical Interval Switching: Compliant with SMPTE RP-168
  • Built-in Black Burst Generator
  • Compatible Transmitter & Receiver: 690T and 690R
  • Power Supply: 100-240V AC
  • Size: Standard 19" 1U Rack Mount Size
  • Included Accessories: Power Cord, rack "ears" and IR remote control transmitter
  • SFP Options:
  • SFP IN/OUT 2KM SFP Fiber Optic Module SM 2km 3G HD SDI Tx/Rx
  • SFP IN/OUT 30KM SFP Fiber Optic Module SM 30km 3G HD SDI Tx/Rx
  • SFP IN/OUT 40KM SFP Fiber Optic Module SM 40km 3G HD SDI Tx/Rx
  • Video SFP supports pathological patterns
  • Warranty: 7 Years
