6x6 HDMI 1080P Matrix Switcher

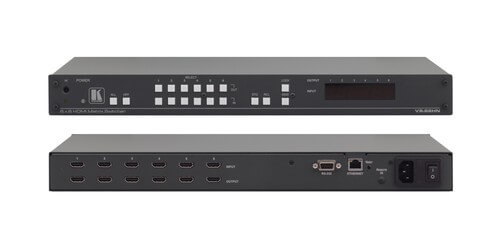

The Kramer VS-66HN is a 6x6 HDMI matrix switcher, it features 6 HDMI inputs and 6 HDMI outputs. The matrix switcher works by taking any input and sending it to your desired output. The matrix switcher also reclocks and equalizes the signal to make sure that you get a clean output, it also boosts the signal allowing you to send your HDMI out further. The unit is HDCP compliant and supports 3D pass through. The matrix switches fast for a clean and unobtrusive presentation. The EDI can be obtained from one output set to one or more inputs, different outputs set to different inputs, or the default EDID. No matter what you choose, your display will be getting the max resolution it can handle or the resolution of your choice.
The device can be controlled via the front panel, the included IR remote control, RS-232, or via the web, you can also store up to 16 presets and easily recall for frequent use. The VS-66HN is a high quality matrix switcher with a 7 year warranty that can reliably distribute and switch your HDMI inputs and outputs.
- Inputs: 6 HDMI
- Outputs: 6 HDMI
- Resolution: Up to 1080P
- Panel lock button
- Fast switching
- 16 presets
- HDCP compliant
- EDID Capture: Copies and stores the EDID from a display device
- Dimensions: 19"x 7" x 1U (W, D, H)
- Weight: 3.64lbs
- Includes: Power cord, remote control, rack ears
- Warranty: 7 years
