Kramer AV VS-55A
5x1(U) Audio Switcher

Description

The VS-55A by Kramer is a high-performance 5x1 Switcher for unbalanced stereo audio signals. It has the ability to switch any one of the 5 signals to a single output. This is an ideal product for use in: Retail Stores, Restaurants, Sports Bars, Video and Production Studios, and in any professional display system requiring premium quality audio switching. With 5 unbalanced stereo audio inputs on RCA connectors, and 1 unbalanced stereo audio output on RCA connector, this matrix has a max bandwidth at 100kHz, and is controlled through the 5 button front panel, or contact closure via the link connector.

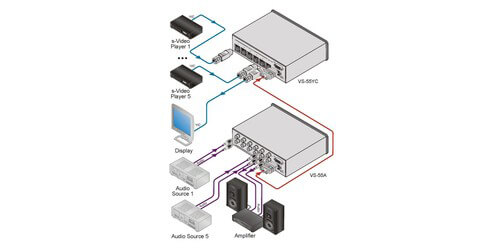

This unit comes backed by Kramer's 7 Year warranty, a compact desktop design, 2 units can be rack mounted side-by-side in the RK-1 rack kit (optional), and is modular so it can be used in conjunction with the VS-55YC & VS-55V.

Specifications

• Control: 5 front panel buttons, contact closure via the link connector
• S/N Ratio: >78dB
• Audio Bandwidth: 100kHz
• Gain Range: 60dB (via underside accessible trimmers)
• Power Consumption: 12V DC, 100mA
• Dimensions: 6.42" x 4.72" x 1.73" (W, D, H)
• Weight: 1.3lbs
• Included Accessories: Power Supply

Downloads

• Kramer AV VS-55A Specifications (PDF)
• Kramer AV VS-55A Manual (PDF)
