Kramer AV VS-33Vxl
3x1 Composite Video Switcher - BNC Connectors

Description

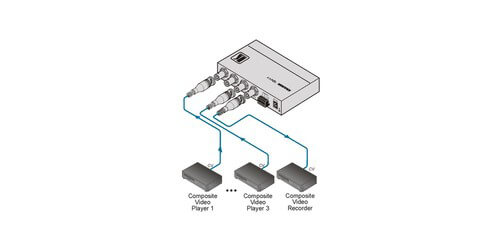

Kramer's VS-33Vxl is a high-performance switcher for composite video signals. This 3x1 switcher uses vertical interval switching which ensures a glitch free switching with genlocked sources. This unit has 3 composite video inputs, 1 composite video output all on BNC connectors, and contact closure remote switching capability. This Video Switcher is primarily used in professional systems that require a high-quality video switching, such as: video production/broadcast facilities, retail stores, and security and CCTV applications. The compact size of this unit makes it so 3 units can be rack mounted side-by-side in a 1U rack, the RK-3T rack adapter from Kramer is recommended. Comes with its own power supply and is backed by a 7 year warranty.

Specifications

• Switching: Vertical Interval
• Contact Closure Remote Capability
• Max. Video Output: 1.8Vpp
• Video S/N Ratio: 73dB
• Crosstalk: 44dB @5MHz
• Power Consumption: 5V DC
• Included Accessories: Power Supply
• Warranty: 7 Years

Downloads

• Kramer AV VS-33Vxl Specifications (PDF)
• Kramer AV VS-33Vxl Manual (PDF)
