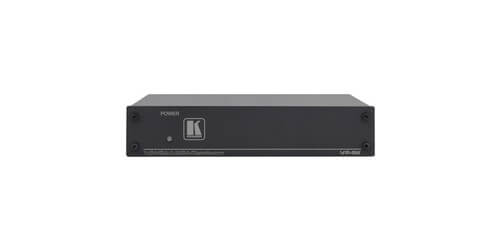

Kramer AV VP-8K
1:8 XGA Computer Graphics Distribution Amplifier HDTV Compatible

Description

Kramer's VP-8K is a quality made 1x8 distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. This device is a great addition to any professional system where there is a need to distribute high quality VGA/UXGA signals from a computer graphics source to multiple monitors and/or projectors, such as in schools, churches, or rental and staging applications.

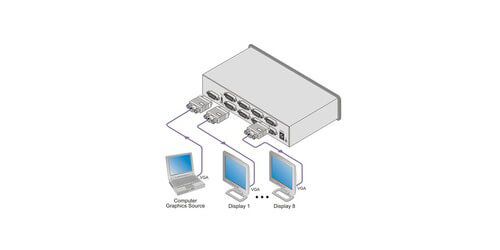

The VP-8K 1x8 takes one input from a computer graphics source, provides the proper buffering and isolation, then distributes the signal to eight identical outputs to displays or projectors. With that, this device has 1 VGA/UXGA input, and 8 VGA/UXGA outputs, all on 15-pin HD female connectors. This unit is also HDTV compatible, has a high bandwidth of 370MHz, and has standard features like Selectable Sync Input Impedance. This unit also features Kramer's Kr-isp Advanced Sync Processing which ensures compatibility with a wide range of computers (even if the sync level is to low) by restoring sync signal waveform. The sync processing can be enabled or disabled as needed.

The VP-8K has a compact desktop size design, so 2 units can be rack mounted side-by-side in a 1U rack space using an optional RK-1 adapter, creating a more efficient low impact footprint. This product comes backed by Kramer's 7 Year warranty.

Specifications

• Bandwidth: 370MHz (-3dB)
• HDTV Compatible
• Kr-isp Advanced Sync Processing
• Compatible with Low-sync Level Computers
• Selectable Sync Input Impedance
• Controls: TTL/ANALOG switch (on the rear panel)
• Max. Output Level: 2.2Vpp
• S/N Ratio: 73dB
• Coupling: DC
• Power Consumption: 5V DC
• Compact Size: 2 units can be rack mounted side by side in a 1U rack space with optional RK-1 adapter
• Included Accessories: Power Supply
• Warranty: 7 years

Downloads

• Kramer AV VP-8K Specifications (PDF)
• Kramer AV VP-8K Manual (PDF)
• Kramer VP-8K AutoCad Drawing (PDF)
