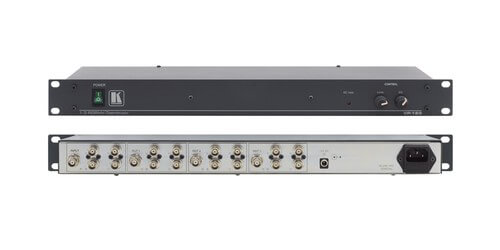

Kramer AV VP-123
1:3 RGBHV Computer Graphics Video Distribution Amplifier (BNCs)

Description

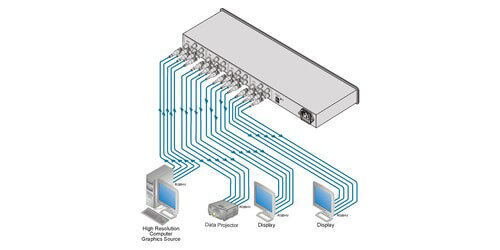

Kramer's VP-123 is a high-quality RGBHV distribution amplifier for computer graphic video signals with resolutions ranging from VGA through UXGA on up. This high bandwidth (450MHz) device is perfect in computer and workstation RGHBV distribution situations, as well as video duplication studios by being able to deliver undiminished quality video duplicates. It can also be used in broadcast component video signal distribution scenarios as it can send high quality signals from a high resolution computer graphics source, to multiple outputs for example a data projector, and flat screen displays.

The VP-123 takes one input, then provides the correct buffering and isolation needed and distributes the signal to up to three identical outputs. This unit is a 1x3 so it features 1 component/RGB/composite video input and 3 component/RGB/composite video outputs all on BNC connectors. This model is also HDTV compatible and has Level (Gain) and EQ (Peaking) controls. Uses a worldwide power supply 100-240V AC & 12V DC and fits in a standard 19" rack mount 1U. Comes backed by a 7 year warranty from Kramer.

Specifications

• HDTV Compatible
• Level (Gain) and EQ (Peaking) Controls
• Bandwidth: 450MHz
• Max. Output Level: 2.1Vpp/75 (R, G, B)
• Crosstalk: 55.9dB, all hostile
• Controls: Level: 0.8 to +6.3 dB, EQ: 0 to +13.6 dB @50MHz
• Power Consumption: 12V DC, 100mA
• Dimensions: 19" x 7.2" x 1U (W, D, H)
• Weight: 6.7lbs
• Included Accessories: Power Supply
• Warranty: 7 Years

Downloads

• Kramer AV VP-123 Specifications (PDF)
• Kramer AV VP-123 Manual (PDF)
