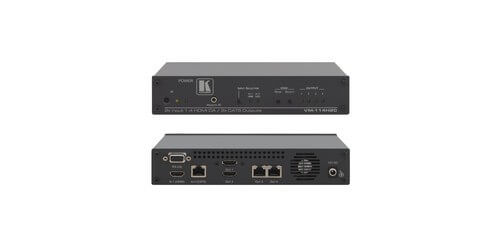

Kramer AV VM-114H2C
HDMI or Cat5 In and 2 Cat5 and 2 HDMI Out Distribution Amplifier
- Inputs: 1 HDMI, 1 twisted pair
- Outputs: 2 twisted pair, 2 HDMI
- Distance: Up to 330', varies with type of cable used and resolution
- HDCP compliant
-Gregory W.
Description

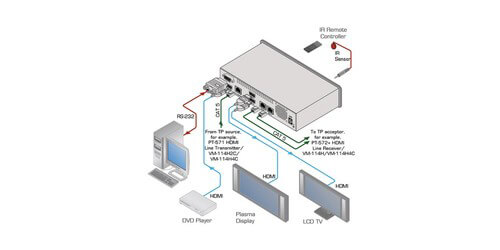

The Kramer VM-114H2C takes your HDMI or twisted pair input signal and distributes it out over either 2 twisted pair outputs to a compatible receiver, or 2 HDMI outputs. Now you can select the input you need either HDMI from a short distance or your twisted pair input from a long distance away. It can send the same signal out up to 4 displays, there is no video loss with Kramer's reclocking technology. When the receivers are within 270' of the unit they require no power, the VM-114H2C sends power to the receivers. Not only does it send video with embedded audio but the unit also receives serial commands and IR signals transparently via the RS-232 port and the TP link.
The distribution amplifier is also HDCP compliant and offers intelligent EDID handling for true plug and play operation. The Kramer VM-114H2C is a perfect choice when you need to distribute your video from any distance reliably to long distances and short distances from one unit.
Specifications
- Passes 3D
- Intelligent EDID handling
- Sends power to compatible receivers
- LED indicator lights
- Control: RS-232 and IR
- Includes: Power supply and IR remote control
- Dimensions: 8.45" x 6.42" x 1.72"
- Weight: 2lbs
- Warranty: 7 years
