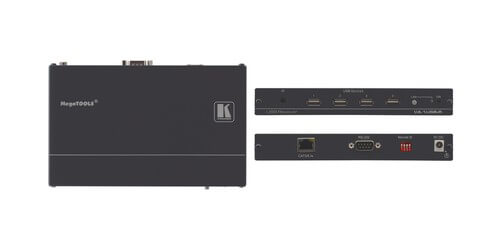

USB 2.0 Twisted Pair Receiver - Range 330'

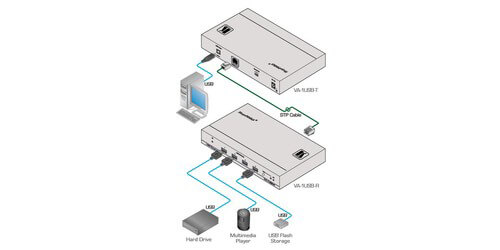

The VA-1USB-R from Kramer is a USB 2.0 true plug and play no driver required twisted pair receiver. This twisted pair receiver is for communicating USB, bi-directional RS-232 data and IR signals over extended distances using CAT 5/6 cable. The unit will receiver a twisted pair signal from the VA-1USB-T and convert it back to USB signals and RS-232 data. This receiver uses USB 2.0 high-speed and USB 1.1 signals and operates in bulk mode, not isochronous mode (please note that many USB works in isochronous mode). This type of receiver is typically used in presentation and multimedia applications as well for long range USB distribution for schools, hospitals, stores, and security installations for example.
This high performance receivers main features is the USB 2.0 high speed signals, a 4-port USB Hub, plug and play operation without drivers, supports all major operating systems, full duplex bi-directional RS-232 transmission, local and remote control of devices via the serial port, and an operating range of up to 330'. With the compact MegaTOOLS size of this device 2 units can be rack mounted side by side in a 1U rack space allowing for your devices to be kept secured and safe and creating less clutter. This receiver comes with its own power supply, and is backed by Kramer's 7 Year warranty.
- Inputs: 1 twisted pair on an RJ-45 connector, 1 IR on a 3.5mm mini jack
- Outputs: 4 USB on USB A-type connectors, 1 bi-directional RS-232 on a 9-pin D sub connector
- USB Support: 1.1 and 2.0 (bulk mode, not isochronous)
- Baud Rate: Up to 115.2kbps, full duplex
- Transmission Range: up to 328'
- 4 Port USB Hub
- Power Consumption: 5V DC
- Included Accessories: Power Supply
- Warranty: 7 Years
