1:2 HDMI W/ Bi-directional RS-232, HDBaseT Receiver

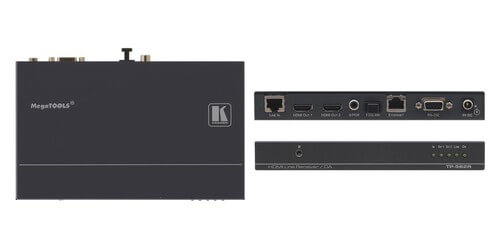

The Kramer TP-582R is a high quality HDBaseT receiver for HDMI, Ethernet 100BaseT, bidirectional RS 232 and IR signals. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS 232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK audio outputs. The TP-582R is HDCP compliant, and supports pass through of EDID and 3D. It can receive the signal from up to 430' when using C-HDK6 cabling.

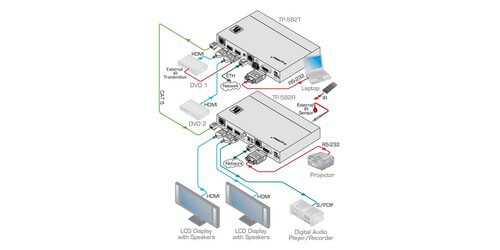

Applications include: home theater, presentations, multimedia applications, and rental/staging.
- INPUTS: 1 RJ 45 connector
- OUTPUTS: 2 HDMI connectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ 45 connector, 1 RS 232 on a 9 pin D sub connector, 1 TOSLINK optical audio, 1S/PDIF in an RCA connector
- COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
- DIMENSIONS (WDH): 7.4" x 4.5" x 1.0"
- WEIGHT: 1.4lbs
- INCLUDES: Power supply
- Warranty: 7 Years
