Kramer AV TBUS-5xl-KIT5
Retractable HDMI and RJ45 Table Box, Power, Slide Away Lid

Description

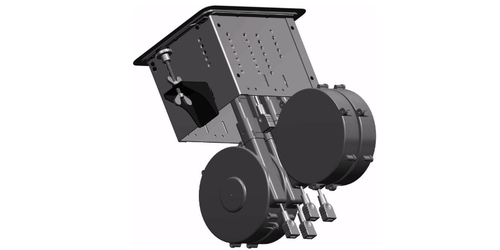

The Kramer TBUS-5xl-KIT5 is a table box with power and retractable cables.  Retractable cables ensure that you always have the correct cable for your presentation while keeping your table nice and tidy. The lid lifts up then slides down and out of the way, the lid also has a small opening in it so cables can be plugged in with the lid closed.

The kit includes (1) power with one 6' cable, (1) 5.9' retractable HDMI and (1) 5.9' retractable RJ45 (Data). The retractable cables all feature a 15" female ended pig tail on the bottom for easy connection.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

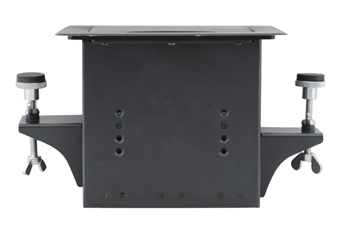

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Box dimensions: 6.9"W x 5.5"D x 5.1"H
• Table cutout: 6.23" x 4.85"
• Works in tables up to 3" thick
• Anodized aluminum top with tilting lid
• The connections can be installed higher or lower in the box if you need cable storage
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-5xl-KIT5 Specifications (PDF)
• Kramer AV TBUS-5xl-KIT5 Manual (PDF)
• Kramer TBUS-5xl-KIT5 Cutout Template (PDF)
