Dual Sided Opposite Facing Pop Up A/V and Power Table Boxes
The Kramer TBUS-202xl-US is a dual sided tilt up table box, each box opens and closes independently of each other. This box will allow users from both sides of the table to reach their connections. All the connections coming out of the box are 12" pigtails with female ends to make for an easy installation, there is only 1 single 6' power cord that needs to be plugged in.

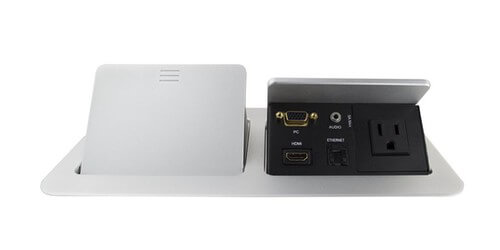

Each side includes: 1 USA power socket, 1 HDMI, 1 VGA, 1 audio, and 1 Ethernet. Only 1 power cord needs to be plugged in.

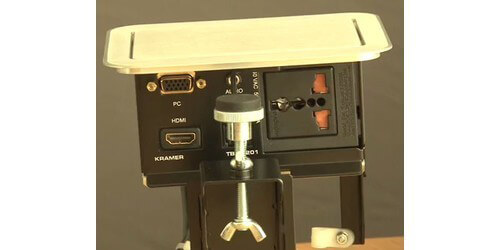

To install cut the hole and drop it in the table and secure with the included clamps. Once installed the box sits flush with the table, when you need your connections press the top of the box you want to open and the hydraulic gas spring tilts the unit open, when you are done press the top till the lid latches shut. The two boxes open independent of each other.
In order to ensure a short lead time, minor assembly is required on most TBUS items.
- Opposite facing table box
- Two pneumatic gas springs, each box tilts open independently of each other
- Connections each side: 1 USA power, 1 HDMI, 1 VGA, 1 audio, and 1 Ethernet

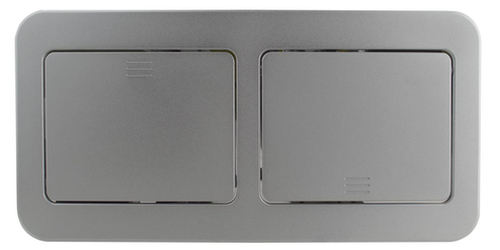

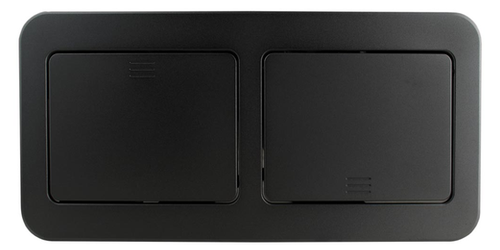

- Colors: Black anodized aluminum or brushed clear aluminum
- Warranty: 7 years
- Bezel dimensions: 11.2" x 5.5"
- Cutout dimensions: 10.5" x 4.8"
- Works in tables up to 3" thick
- Ships with cardboard cutout template for easy installation
- Includes: (1) TBUS-202xl table box, (2) TS-201US power sockets, (1) C-ACY/US 6' power cord
