8-Button Room Controller, Requires K-Config Software 2.0

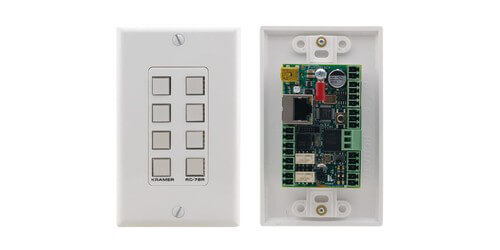

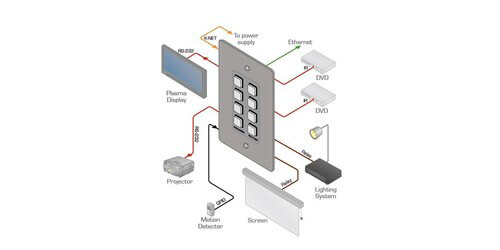

The RC-78R by Kramer is an eight button configurable room controller for multimedia rooms. It controls audio components, video components and other room facilities such as lights and screens.
It also features the following:
8 Configurable Buttons, 2 Bidirectional RS 232 Ports, Control Ethernet & K NET. Size - Wallplate
- INPUTS: 2 RS 232, 1 RS 485, 1 GPI/O and 1 K NET on terminal block connectors
- 1 Ethernet on an RJ 45 connector
- 1 USB for programming.
- OUTPUTS: 2 IR, 2 relays (36V AC or DC, 2A, 60VAC maximum on non inductive load) and 1 GPI/O on terminal block connectors.
- DEFAULT IP SETTINGS: IP number 192.168.1.39
- Mask 255.255.0.0
- Gateway 0.0.0.0.
- POWER CONSUMPTION: 12V DC, 260mA.
- OPERATING TEMPERATURE: 0 to +40 C (32 to 104 F).
- STORAGE TEMPERATURE: 40 to +70 C ( 40 to 158 F).
- HUMIDITY: 10% to 90%, RHL non condensing.
- DIMENSIONS: 7.9cm x 2.8cm x 12.4cm (3.1" x 1.1" x 4.9") W, D, H (with wall plate).
- WEIGHT: 0.6kg (1.4lbs) approx.
- ACCESSORIES: Power supply, black and white front plates, black and white Decora frames.
