6-Button Room Controller, Requires K-Config Software 2.0

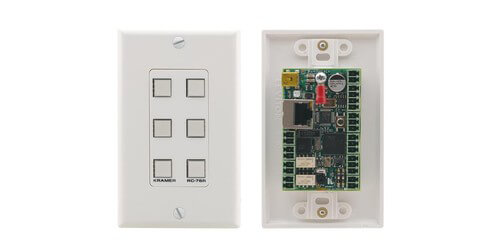

The RC 76R by Kramer is a six button configurable room controller for multimedia rooms. It controls audio components, video components and other room facilities such as lights and screens. It has the following features.
6 Configurable Buttons - RGB backlit, front panel buttons, configured using the K Config configuration software. 1 GPI/O Port - Can be configured by K Config as a digital input, digital output or analog input for interfacing with a variety of devices such as sensors, switches, LEDs, or relays. 2 Bidirectional RS-232 Ports - Control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers and scalers. 2 Relay Contact Closure Ports - Control other room items related to the AV system, such as, raising and lowering drapes, a screen or a projector. 2 IR Control Ports - With an IR learning receiver behind the front plate that learns commands from any IR remote. 1 RS-485 Port. Kramer Site-CTRL Compatibility - For network remote control and management over the Ethernet port. K-NET Control Channel - Connects compatible user interfaces, supply power and control data over a single cable. Flexible Control - Via Ethernet and K NET. Wall Plate Size - 1 gang US, Decora compatible. Suitable for installation in TBUS 1Axl. Requires K-Config Software 2.0 - Available Oct 2013
- INPUTS: 2 RS 232, 1 RS 485, 1 GPI/O and 1 K NET on terminal block connectors
- 1 Ethernet on an RJ 45 connector
- 1 USB for programming.
- OUTPUTS: 2 IR, 2 relays (36V AC or DC, 2A, 60VAC maximum on non inductive load) and 1 GPI/O on terminal block connectors.
- DEFAULT IP SETTINGS: IP number 192.168.1.39
- Mask 255.255.0.0
- Gateway 0.0.0.0.
- POWER CONSUMPTION: 12V DC, 260mA.
- OPERATING TEMPERATURE: 0 to +40 C (32 to 104 F).
- STORAGE TEMPERATURE: 40 to +70 C ( 40 to 158 F).
- HUMIDITY: 10% to 90%, RHL non condensing.
- DIMENSIONS: 7.9cm x 2.8cm x 12.4cm (3.1" x 1.1" x 4.9") W, D, H (with wall plate).
- WEIGHT: 0.6kg (1.4lbs) approx.
- ACCESSORIES: Power supply, black and white front plates, black and white Decora frames.
