1x6 Power Distribution Controller
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.

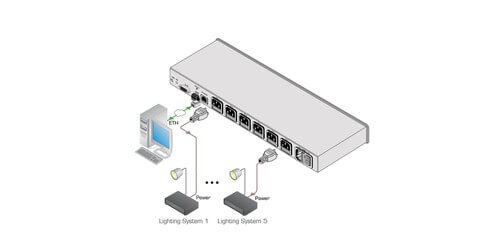

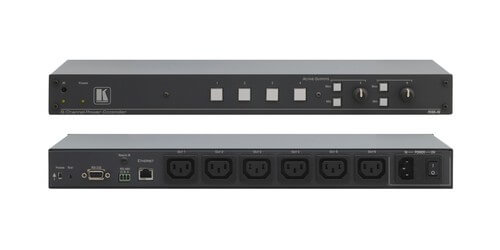

The Kramer RB-6 was designed so you can send out your power to up to 6 external devices and have powered control of those devices. Four of the power outlets have on/off push button control and two power outlets have on/off switching as well as full voltage control. The outputs can handle 10 amps total with a maximum of 6 amps per output. The controller can be cascaded up to 8 times making for easy large deployment. Push button LEDs give quick and easy to see visual indication of status.
The embedded web server controls on and off all channels and adjusts voltage on channels 5 and 6, it also schedules outlet activity of each channel separately via Ethernet. The device can also be controlled via the front panel push buttons, the included IR remote control, RS-232, and RS-485.
- Inputs: 1 AC power
- Outputs: 6 AC power outlets
- The 6 outputs can be controlled via Ethernet, front panel push buttons, the included IR remote control, RS-232, and RS-485
- Includes: Rack ears, power cord, IR remote control
- Dimensions: 19" x 9.34 x 1U
- Weight: 4.9lbs
- Warranty: 7 years
