HDMI over HDBaseT Transmitter with 4K@60Hz 4:2:0 UHD Support

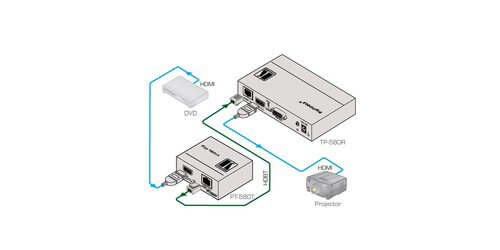

The Kramer PT−580T is a 4K@60Hz (4:2:0) UHD resolution HDBaseT twisted pair transmitter for HDMI signals, the unit inputs an HDMI signal that it then converts to a twisted pair signal and out to a HDBaseT receiver. The unit is HDCP compliant and also supports 3D pass through, the unit can transmit up to 230' when used with Kramer C-HDK6/HDK6 HDBaseT cable.
- HDMI Support: Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, CEC
- Data Rate: 10.2Gbps
- HDBaseT HDMI transmitter
- Input: 1 HDMI
- Output: 1 RJ45
- HDCP compliant
- 3D & EDID pass through
- 2K and 4K resolution support: 4K@60Hz (4:2:0) UHD, 2Kx4K
- Range: Up to 230' when used with C-HDK6/HDK6 HDBaseT cable
- System Range: 230' at 2K, 130' at 4K (UHD) resolutions
- Dimensions: 2.4" x 2.1" x 1"
- Weight: .3lb
- Warranty: 7 years
