Kramer AV PT-102SN
1:2 Y/C Distribution Amplifier
- 1x2 (Y/C) s-Video Distribution Amplifier
- Input: 1 s-Video on a 4-pin connector

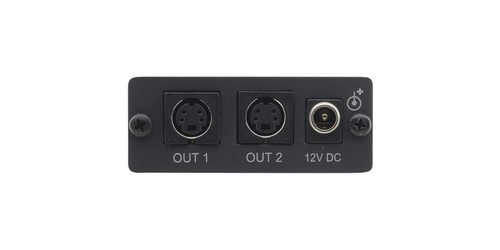

- Output: 2 s-Video on 4-pin connectors
- Y & C Level Controls
-Brandon K.
Description

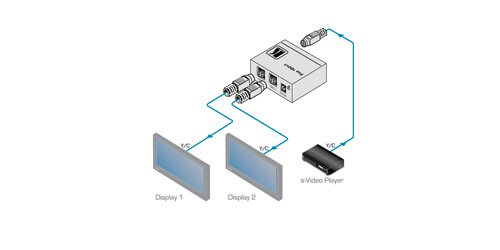

The PT-102SN is a high-performance 1x2 video distribution amplifier for s-Video (Y/C) video signals. This compact sized amplifier takes one input, provides the proper isolation and buffering, then distributes the signal to two identical outputs. Y & C level controls allows the user can control the output of the amplifier. This s-Video distribution amp is an ideal solution for uses in Audio/Video duplication studios, retail showrooms, home theater systems, and CCTV/Security systems, or wherever there is a need to display 2 identical images from a single source.
The PT-102SN is an ultra compact model, 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter to allow for a more efficient storage space. With a bandwidth of 150MHz this device features 1 s-Video on a 4-pin connecter input and 2 s-Video outputs on 4-pin connectors. Utilizes AC coupling, has a 12V DC power consumption, comes with a power supply and mounting bracket. The PT-102SN comes with a 7 year from Kramer.
Specifications
- Bandwidth: 150MHz
- Output Level: 1.3Vpp
- Coupling: AC
- Power Consumption: 12v DC / 25mA
- Controls: Gain: luma (Y) &minus / 1.9dB to +5.1dB / chroma (C) 0dB to +6.8dB, @5MHz
- Included Accessories: Power Supply & Mounting Bracket
- Dimensions: 2.45" x 2.04" x 0.96" (W, D, H) Weight: 0.3lbs
- Warranty: 7 Years
