Kramer KADS-100

Master Audio Controller for up to 99 KADS Speakers

Satisfaction Guaranteed!
Manufacturer SKU: 60-80186010
Regular Price: $2,095.00
Instant Savings: -$419.00
Quantity: $1,676.00
0 out of 5 based on 0 ratings.

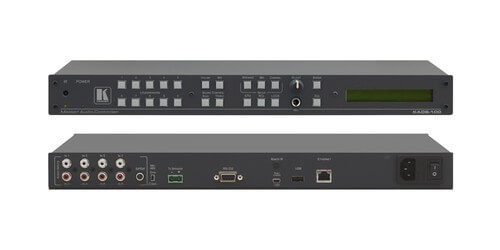

The Kramer KADS-100 is a revolutionary new controller that allows you to distribute and control your audio to up to 99 KADS speakers from standard speaker cable.  Up to 8 speakers per branch can be daisy-chained from 1 speaker cable. You can have up to 100' between each speaker, this gives you a total range up to up 800' per branch.  Connect up to 8 KADS-1 speakers for your first branch via a single speaker cable with no power needed.  If you need more branches use the KADS-2 speakers with their power supplies.

The controller features eight unbalanced mono audio inputs, one S/PDIF digital stereo audio input, and one USB connector for flash drives. Each input can be assigned to one or more KADS speakers. RS−232 data and commands flow bidirectionally allowing remote status requests and control of the speakers.  The controller allows you to adjust the volume, bass, EQ, and gain control of each speaker, additionally there are 10 presets for quick access to commonly used configurations.  The unit can be controlled via RS-232, integrated Web GUI, and IR with the included remote control.

The Kramer KADS-100 system is a perfect solution for distributing audio for medium to large applications or any paging system.

  • Inputs: 1 mic on a 6.5mm phone jack (F), 8 analog stereo audio on RCA connectors, 1 S/PDIF audio on an RCA connector, 1 USB on a USB Type A connector
  • Output: 1 speaker on phoenix connector
  • Controlled via: RS-232, integrated Web GUI, and IR with the included remote control
  • 10 presets
  • Adjustments: volume, bass, EQ, and gain control of each speaker
  • Up to 99 speakers can be connected

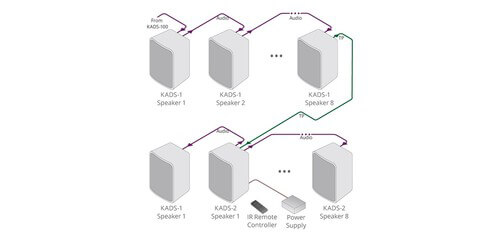

  • Up to 8 speakers per branch can be daisy-chained from 1 speaker cable. You can have up to 100' between each speaker, this gives you a total range up to up 800' per branch. Connect up to 8 KADS-1 speakers for your first branch via a single speaker cable with no power needed. If you need more branches use the KADS-2 speakers with their power supplies
  • Dimensions: 19" x 7.20 x 1U W, D, H
  • Weight: 5.1lbs
  • Includes: Power cord, IR remote, rack ears, 1 ferrite ring
  • Warranty: 7 years
