HDMI to 3G HD-SDI Format Converter

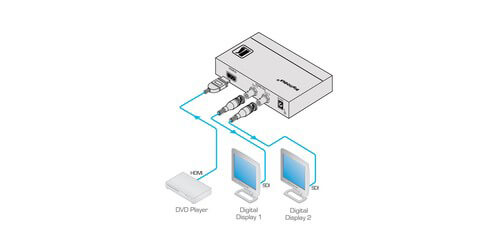

The Kramer FC-113 converts your HDMI signal to 2 identical SDI video signals with embedded audio. The converter supports several multi-standards of SDI operation including SDI (SMPTE 259M), HD SDI (SMPTE 292M), and 3G HD−SDI (SMPTE 424M). LED indicator lights on the unit help you to quickly see the active input and if it is a standard or high definition signal. The converter can be used as a stand alone device anywhere due to it's small size, or up to 3 units can be mounted side by side in a rack with the optionally purchased RK-3T bracket. The converter can handle a data rate of a maximum of 3Gbps and offers no frame rate or resolution conversion.
The Kramer FC-113 is a reliable means to convert your HDMI to 3G HD-SDI with no picture loss and is ideal for home theaters, rentals, and much more.
- Input: 1 HDMI
- Outputs: 2 SD/HD/3G HD SDI on BNC connectors
- Max data rate: 3 Gbps
- Indicator LED lights for active input and HD or SD resolution
- Input formats: 525i, 625i, 1080p at 23.98/24/25/29.97/30/50/59.94/60, 1080i at 50/59.94/60, 720p at 50/59.94/60
- Includes: Power supply
- Dimensions: 4.72" x 2.81" x 0.96" W, D, H
- Weight: 1lb
- Warranty: 7 years
