Kramer CP-MH1/MH1/XL-50

15-pin HD(M), 3.5mm + 3 RCA, Multi-Head Plenum Cable, 50'

Satisfaction Guaranteed!
Manufacturer SKU: 92-9311050
Regular Price: $188.00
Instant Savings: -$37.60
Quantity: $150.40
0 out of 5 based on 0 ratings.

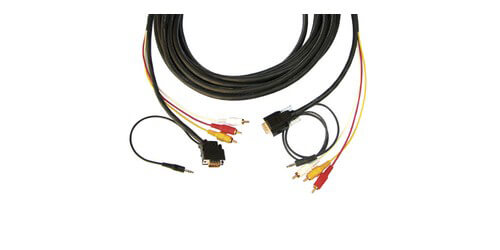

The CP-MH1/MH1/XL-50 from Kramer is 50' HD15 Male with 3.5mm Audio and 3 RCA Hydra to 45 degree HD15 Male with 3.5mm Audio and 3 RCA Hydra Plenum Cable. This high-performance cable has many features and is great for any application requiring a cost-effective one piece cable solution for the most commonly used signals found in the AV equipped rooms. Featuring slim connectors with a shallow depth profile and elegant molded connectors at one end where it would typically be connected to a projector. On the other end this cable has a extra shallow 45 degree VGA connector with removable metal shells, which provides many possible installation options in tight spaces.

Use the 15−pin HD, 3.5mm stereo, and 3 RCAs for any combination of VGA, video and audio signals. The mini connector may also support remote control in some cases. The RCAs are typically used for composite video and L/R audio, but can be used for analog component video. The CP-MH1/MH1/XL-50 has an array of flexible applications as all RGBHV signals are assigned to coaxes which makes it easy and fast to cut and convert one end to a 5 BNC in the field if needed, since the audio travels on an independent shielded pair. This cable is also compatible for use with Kramer WAV-5 wall plates. A plenum rating makes this cable safe to use in pass through air spaces and are constructed from CL2P and CMP rated cable containing six high-resolution mini coaxes and 2 shielded pairs. Comes back by Kramer's 7 Year warranty.

  • Length: 50'
  • Connector 1: HD15 Male, 3.5mm Male, 3 x RCA Male
  • Connector 2: 45 degree HD15 Male, 3.5mm Male, 3 x RCA Male
  • Plenum Rated
  • Wire Gauge: Coaxial 26 AWG, Shielded Pair 22 AWG
  • Conductor: Coaxial: 7/34 tinned copper, Shielded Pair: 7/30 tinned copper
  • Shielding: Coaxial 38 AWG tinned copper aluminum mylar foil
  • UL: CL2P
  • Jacket Material: Lead-free Plenum rated PVC
  • Impedance: 75 Ohms
  • Voltage: 150 V RMS
  • Warranty: 7 Years
