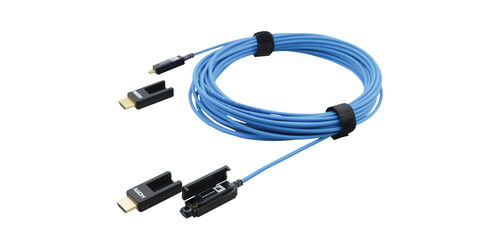

Plenum Active Optical 4K HDMI Cable w/ Removable Ends - 66'
The Kramer CP-AOCH/XL-66 is a 66' long plenum rated active optical HDMI cable. This cable can handle up to 4K/60 4:2:0 UHD and 4K/30 4:4:4 resolutions with embedded audio, and features a high data transfer rate of up to 10.2Gbps. The HDMI ends of this hybrid-fiber cable quickly detach which allows for a much smaller head that then makes this cable ideal to be run through conduit or other tight spaces with the included pulling capsule. The cable is only .13" in diameter and has a .24" bending radius, with 110 pounds of pulling strength the cable can be ran virtually anywhere. The cable derives its power from the HDMI source, however if the source does not provide adequate power the use of an external USB cable connected to a power supply will be needed (1x 3' USB cable included). If you need to run a plenum rated HDMI cable a long distance in a tight spot then the Kramer CP-AOCH/XL is the best choice on the market.
Kramer also offers DVI ends that can be purchased separately (not included) for the CP-AOCH/XL series cable if needing DVI connectors rather than the standard HDMI connectors they come with. These cables also provide transparent EDID and HDCP support without signal attenuation. Equally they also provide reduce risk of EMI and RFI interference to provide a perfect solution for critical Pro AV installations that demand the highest signal integrity. Comes backed by a 7 year warranty from Kramer.
- 66' long
- HDMI optical cable
- Bandwidth: 10.2Gbps
- Detachable HDMI ends

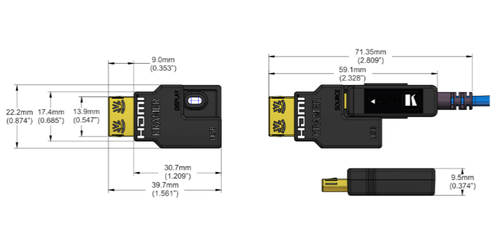

- Connector Head Dimensions: 1.561" x 0.874" x 0.374" (L x W x H)

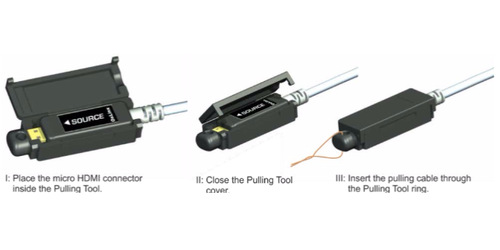

- Install ready pulling capsule
- EMI & RFI Immunity
- Supported Audio Formats: Multi-channel audio, Dolby True HD, DTS-HD Master Audio
- Plenum rated for North America
- No external power required if source provides enough power, Includes a micro USB port to connect to an external 5V power supply (mostly on the display side if additional power is needed)
- Resolution: 4K@30Hz (4:4:4) UHD, 4K@60Hz (4:2:0) UHD, 8bit, full HD, 3D Deep Color
- HDMI Compliance: HDCP 2.2, EDID, CEC
- Very thin cable, only 0.13" in diameter
- High Quality Connectors: 24K gold-plated, corrosion-resistant
- Features a low .24" bending radius
- Deep Color 48 bit Pull strength: 110lbs
- Embedded HD audio
- RoHS 2011/65/EU Compliant
- Included Accessories: 1 3' USB Cable for external power if needed
- Warranty: 7 years
