4K@60Hz (4:2:0), HDMI over Fiber Optic Receiver - HDCP Compliant

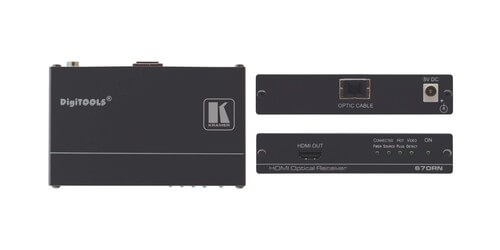

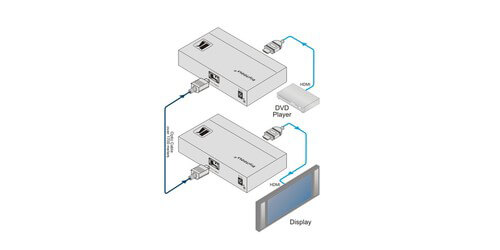

The 670RN from Kramer is a 4K60 (4:2:0) high-performance fiber optic receiver for 4K UHD HDMI signals. This HDCP compliant receiver works by taking in an optical signal from the 670TN transmitter and then converts the light pulses back into an HDMI signal. With a potential system range of 5570' for 1080p and 1970' for 4K, this device when used with the 670TN transmitter, is primarily found in long range multimedia distribution applications for cinemas, stores, and entertainment centers for example. It would also be a great addition in video production and broadcast facilities, retail stores, point of sale systems, and would even work great in high-end home theater applications.
This receiver comes with a lot of built-in features and abilities the main ones being: 4K resolutions, HDTV compatibility and HDCP compliance, and its extended range capabilities of up to 5570' at 1080p. HDMI support includes deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, and CEC. Signal transmission for receiver works by transmitting four TMDS video channels as well as one low-speed channel for passing HDCP, EDID, and a Hot Plug Detect (HPD) signal over one multi-mode fiber cable. Multi-mode fiber optic OM3 cable with SC connectors is the type of cable this device uses. EDID PassThru is also a handy feature this unit supports, it works by passing the EDID signal between the source, a dvd/Bluray player for example, and display such a flat screen LCD.
With 4K resolutions and up to 10.2Gbps data transfer rates, the 670RN and 670T would be an ideal solution to any situation requiring a fast paced high-quality signal over extended ranges from a source to a display, and it has 3D pass through abilities. Comes with a power supply, bracket installation kit, and is backed by a 7 year warranty from Kramer.
- Max. Resolution: up to 4K@60Hz (4:2:0) UHD, 2Kx4K and WUXGA
- Input: 1 SC optical connector
- Output: HDMI connector
- Max. Data Rate: up to 10.2Gbps
- HDTV Compatible
- HDCP Compliant
- Fiber-Optic Connection: SC connectors for multimode (OM3) fiber cable (not supplied with the unit)
- HDMI Support: Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS HD, CEC
- 3D Pass-Through
- System Range: 5570' for 1080p, 1970' for 4K
- EDID PassThru: Passes EDID signals between the source and display
- Signal Transmission: Transmits four TMDS video channels and 1 low speed channel for passing HDCP, EDID and Hot Plug Detect (HDP) signal over one multi-mode fiber
- Laser Standards Compliance: IEC 60825 1, FDA 21CFR1040
- Laser Class 1: Safety of laser products
- Cable Type: Multi-mode fiber optic OM3 cable with SC connectors
- Power Consumption: 5V DC
- Included Accessories: Power Supply & bracket installation kit
- Optional Accessories: RK-3T 19" rack adapter
- Warranty: 7 Years
