Kramer AV 105VB
1:5 Composite Distribution Amplifier (BNCs)
- 1x5 Composite Video Distribution Amplifier
- Input: 1 composite video on BNC connectors
- Outputs: 5 composite video on BNC connectors
- Bandwidth: 400Mhz
-Chad R.
Description

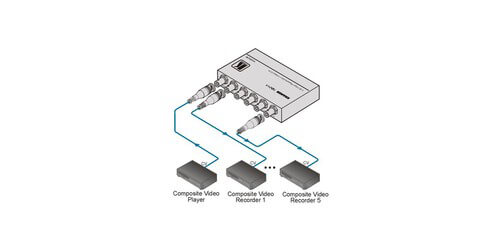

The 105VB from Kramer is a 1x5 high-quality distribution amplifier for composite video signals. With a high-bandwidth of 400MHz to ensure transparent operation in the most critical operations, this device will take one input, provide the correct isolation and buffering and then distribute the signal to five identical outputs. This is an ideal solution for any professional display system requiring an identical picture from one source to be displayed on several monitors, for example in CCTV and Home Theater applications.
The 105VB has 1 composite video input, and 5 composite video outputs, all on BNC connectors. This device includes Level (Gain) controls, is 12V DC powered, and has a video level trimmer on the underside. A power supply and mounting bracket is also included with this compact sized unit that can be rack mounted side-by-side with 2 other units in a 1U Rackspace using the optional RK-3T rack adapter.
Specifications
- Level (Gain) Controls
- Max. Video Output: 2Vpp
- S/N ratio: 80dB
- Control: Up to +6dB
- Coupling: AC
- Power Consumption: 12V DC / 100mA
- Included Accessories: Power Supply & Mounting Bracket
- Dimension: 4.72" x 2.81" x 0.96" (W, D, H)
- Weight: 0.5lbs
- Warranty: 7 Years
