Home > Cables -> Ethernet Cables -> HDBaseT Bulk Cables -> Key Digital -> KD-CAT6STP1X CAT6a STP Cable Non Plenum, Blue, 23AWG- 1000' Spool

Key Digital KD-CAT6STP1X

CAT6a STP Cable Non Plenum, Blue, 23AWG- 1000' Spool

Satisfaction Guaranteed!
Part #: KD-CAT6STP1X
Your Price: $800.00
Quantity:
0 out of 5 based on 0 ratings.

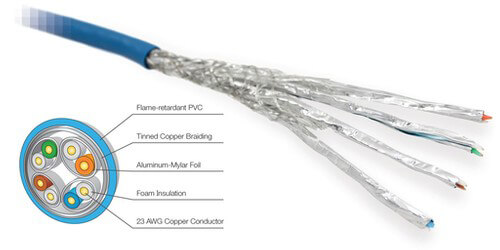

Key Digital's KD-CAT6STP1X is a 1000' FatCAT Series Cat-6/STP Cable that features tinned-copper braid shielding and 23AWG bare copper conductor. This cable was designed to ensure a reliable and crisp signal transfer over longer cable runs. KD-CAT6STP1X Cat Cable was designed to be used with Key Digital IQ Series HDBT/HDMI via Cat6 Matrix Switchers and FatCAT Series extenders to ensure improved syncing / stable signals. Being made with quality construction the cable also features an internal shield material of aluminum Mylar tape, an overall shield material of tinned-copper braid, has a strain-relief neck that acts as a drain-wire connectivity point, and features a 2-piece connector that includes plastic insert for each wire in respective standard. This cable is best utilized when needing a reliable long distance transmission of HD video signals and up to 10GBaseT networks.

  • Length: 1000' Spool
  • Applications: HDBaseT, 10GBaseT, 1GBase-T, 100Base-T
  • 10Base-T
  • Twisted Pairs: 4 individually aluminum-foil screened & overall braid-shielded to an S/FTP form
  • Link Channel Bandwidth: 500 MHz
  • Standards: CAT6A as described in ANSI/TIA-568-C.1. and ISO/IEC 11801, 2nd Ed
  • Supported distance: 330' for 10GBaseT networking, 400' for HDBaseT
  • Conductor Size: 23 AWG Bare Copper
  • Internal Shield Material: Aluminum-Mylar Tape
  • Overall Shield Material: Tinned-Copper Braid
  • Conductor Color Code: Standard
  • Total Wires: 8
  • Diameter: 7.20 mm or 0.28346" Designed to work with: Key Digital Digital IQ Series HDBT/HDMI via CAT6a Matrix Switchers and FatCAT Series Extenders to ensure improved syncing / stable signals
  • Strain-relief neck: Acts as drain-wire connectivity point
  • 2-piece connector: Includes plastic insert for each wire in respective standard
  • Utilize: Reliable long distance HD video signals and up to 10GBaseT networks
  • Future-proofs: Any LAN installation by ensuring high-performance voice, data, video and security capabilities for cabling in noisy environment
  • Warranty: 3 Years
