KanexPro WP-HDBASETX

2 Gang Auto Switching HDBaseT Wall Plate w/ HDMI & VGA - 230'

Satisfaction Guaranteed!
Part #: WP-HDBASETX
Your Price: $749.95
Quantity:
0 out of 5 based on 0 ratings.

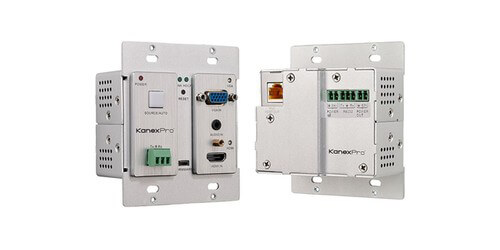

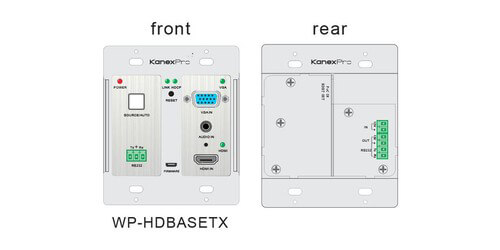

The KanexPro WP-HDBASETX is a two gang wall plate that features 1 HDMI, 1 VGA, and 1 audio input. The connections auto switch so the last plugged in signal automatically switches on the output, you can also use the source button to manually switch between inputs. The output is sent out via Cat6 using HDBaseT technology and can send your video, embedded audio, and RS-232 up to 230' to the sold separately HDBASE70POER receiver. When power is plugged into the receiver the receiver sends power to the wall plate via PoE to the wall plate so the wall plate doesn't require an external power supply. The wall plate switcher supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K with built in scaling function for HDMI with output resolutions up to 4K.

The KanexPro WP-HDBASETX is a full featured wall plate that can handle your digital and analog needs with auto switching capabilities and HDBaseT out over Cat6 up to 230'.

  • Inputs: 1 HDMI, 1 VGA, 1 audio, 1 RS-232
  • Switching: Auto, manual, or RS-232
  • Output: RJ45, sends video, embedded audio, and RS-232 up to 230'
  • Locking HDMI connector
  • HDCP & EDID compliant
  • HDMI 1.4
  • Remote power supporting PoE
  • Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K
  • Dimensions: 2 gang decora
  • Color: White
  • Warranty: 3 years
  • Includes: 8 screws, 3 terminal blocks, 1 face plate, power supply(if receiver doesn't power wall plate)
