5x2 HDBaseT Seamless Presentation Switcher & Scaler

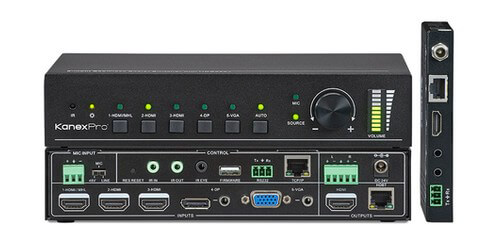

Introducing the KanexPro SW-HDSC51HDBT HDBaseT Seamless Presentation Switcher and Scaler with five inputs and two outputs that extend up to 230 feet. The five inputs (3 HDMI, 1 DP, & 1 VGA) allow the user to switch and scale up to 5 devices while the one HDMI and one HDBaseT output provides the ability to transmit those five inputs to up to two mirrored displays. This devices supports seamless switching with zero latency from one device to another no matter what it is connected to. This switcher supports CEC commands, as well as EDID management, and compliance with HDCP 2.2 specifications. The Power over HDBaseT (PoH) adds additional convenience for the user.
To control this device the user can utilize the IR input, the IR output, or the RS-232; all three of which can be bi-directionally broadcasted between the included HDBaseT receiver and the scaler-switcher. This unit can also be controlled via front panel push buttons, over web-based GUI, RS-232 commands and through the IR remote. The SW-HDSC51HDBT Switcher/Scaler from KanexPro is an ideal solution for board rooms, conference rooms, lecture halls, and virtually any other setting where a variety of inputs need to be displayed across two displays (one HDMI and one HDBaseT).
Additional Features of this Switcher Scaler Include:
- Auto-switching enabled
- Built-in Audio De-embedder for HDMI & VGA inputs
- 48V phantom power for condensers
- MIC port supports balanced/unbalanced signal, suppresses external noise effectively
- 3-level MIC input for use with: condenser, dynamic & wireless microphones
- Powerful OSD function
- Video Input: 1 x HDMI/MHL, 2 x HDMI, 1 x DP, 1 x VGA
- Video Input Connector: 3 female HDMI, 1 x DisplayPort, 1 x female VGA (15-pin)
- Input Video Signal: HDMI, DP, YPbPr, C-video, VGA
- Video Output: 1 x HDMI, 1 x HDBaseT
- Video Output Connector: 1 x female HDMI, 1 x RJ45
- Output Video Signal: HDMI, HDBaseT
- Output Resolution: 1920 x 1200
- Standards: Compliant with HDMI 1.4 & HDCP 2.2
- Audio Input: 1 x stereo audio input for DP, 1 x stereo audio input for VGA, 1 x Microphone audio
- Audio Input Connector: 2 x 3.5mm Stereo jacks, 1 x 3-Pin phoenix connector
- Audio Output: 1 x Dual-Mono analog audio
- Audio Output Connector: 1 x 5-Pin phoenix connector
- Frequency Response: 20Hz~20K Hz
- Stereo Channel Separation: >80dB @1KHz
- Control Port: 1 x IR IN, 1 x IR OUT, 1 x IR EYE, 1 x RS232, 1 x TCP/IP
- Control Connector: 3 x 3.5mm mini jack, 1 x 3-Pin phoenix connectors, 1 x RJ45
- Transmission Distance: 1080p 70m(Cat6)
- Power Supply: DC24V, 2.71A
- Power Consumption: 27 Watts
- Weight: 1.76 lbs.

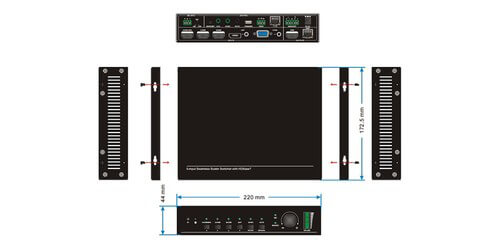

- Dimensions (WxDxH): 8.6"x 6.8" x 1.7"
- Included Items: Power Adapter, IR Remote, VGA Converting Cable, HDBaseT Receiver, Mounting Ears, Plastic Cushions, RS-232 Cable, Phoenix Connectors, IR Emitter, IR Receiver, User Manual
- Warranty: 3 years
