KanexPro SP-SDIX2

1x2 3G/HD/SD-SDI Distribution Amplifier - 1080p

Satisfaction Guaranteed!
Part #: SP-SDIX2
Your Price: $149.95
0 out of 5 based on 0 ratings.

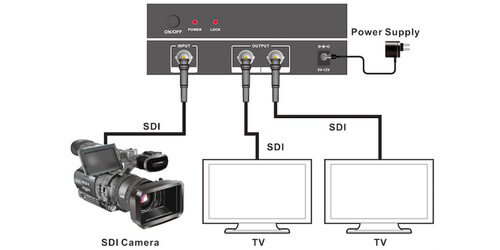

The KanexPro SP-SDIX2 is a 1x2 Distribution Amplifier that can split, re-clock, and amplify an SDI source to 2 SDI outputs. It offers full HD 1080p resolutions to up to 2 displays simultaneously at 3 Gbps data rate, for faster broadcasting and production. This unit was designed to accept one SDI input from the SD-SDI, HD-SDI, or 3G-SDI video source such as VTR, SDI recorders and other sources. The splitter will then perfectly replicate the signal and automatically deploy cable equalization to allow for dual simultaneous transmission of SDI signals as far as 1000' over 8 x BNC coax runs to 2 monitors. When using HD-SDI video, the distribution amplifier can transmit to a range of 500', and for 3G-SDI up to 328'. Making this an ideal unit for use within SDI based surveillance systems, post-production, TV studio, digital cinema, or other AV applications where you need to split and extend from a camera or other device that is equipped with 3G/HD/SD-SDI outputs to dual SDI compatible displays or video processors. The front panel of the distribution amplifier contains LED's for power and input signal status.

  • Input: SDI (BNC)
  • Outputs: 2 x SDI (BNC)
  • Input/Output Video Signal: SD/HD/3G SDI
  • Supported Resolutions: Up to HDTV 1080p 1920x1080@60Hz
  • Bandwidth: 3Gbps
  • Supported Line Ranges (using RG6): 3G: 328' In and 295' Out / HD: 722' In and 590' Out / SD: 1000' In and 918' Out
  • Built-in cable equalization and re-clocking
  • Electrical Protection: Power reverse polarity protection, power overvoltage protection, ESD protected
  • Size: (WDH): 70 W x 145 D x 25 H (mm)
  • Weight (net): 320 g
  • Included Accessories: 5V1A DC Power Supply adapter
  • Warranty: 3 Years
