1x4 HDBaseT 4K Distribution Amplifier w/ PoE - 230'
The KanexPro SP-HDBT1X4 accepts 1 HDMI input and then distributes the signal out identically over 4 HDBaseT outputs, the signal can be sent up to 230' with UltraHD 4K. A handy HDMI loop output provides local monitoring of your distribution for quick and easy visual reference. The distribution amplifier can send power to compatible HDBaseT receivers such as the HDBASE70POER so no power is needed for the receiver. The unit supports resolutions up to 1080P/60 and 4K UHD. This model is cascadable so your signal can be sent to up to 16 displays via easy to use IR LOOP or RS232 LOOP.

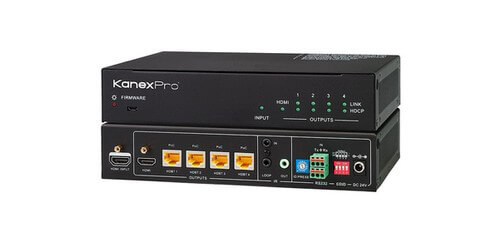

The KanexPro SP-HDBT1X4 also features EDID management, locking HDMI connectors, and is firmware upgradable. The unit can be controlled with RS-232 or IR loop in, LED lights on the front give quick visual indication status and HDCP. Use the KanexPro SP-HDBT1X4 when you need to send your high resolution signals over a long distance.
- Inputs: 1 HDMI
- Outputs: 4 HDBaseT
- Local HDMI out
- Control: RS-232, IR loop

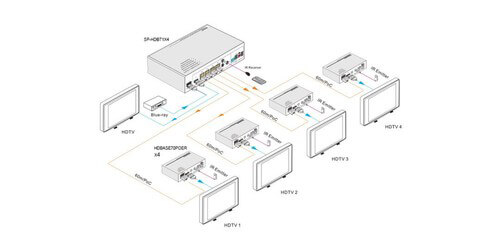

- Daisy chainable up to 16 displays
- Max resolution: Up to 4K (VESA and SMPTE 480p to 2160p(4K) With 3D Bit depth: 16, 20, 24)
- HDMI v1.4
- Includes: Mounting ears, screw, audio cable, RS-232 3-pin captive cable for DB9, RS-232 cable for cascading, power cord
- Dimensions: 8.6" x 5.8" x 1.7"
- Warranty: 3 years
