Home > Distribution Amplifiers -> HDMI -> 1X2 -> KanexPro -> SP-HD20-1X24K HDMI 4K60 4:2:0 1x2 Distribution Amplifier with HDCP2.2

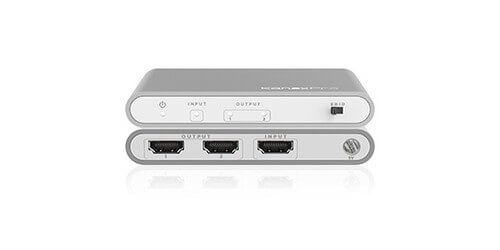

KanexPro SP-HD20-1X24K

HDMI 4K60 4:2:0 1x2 Distribution Amplifier with HDCP2.2

Satisfaction Guaranteed!
Part #: SP-HD20-1X24K
Your Price: $69.95
Quantity:
0 out of 5 based on 0 ratings.

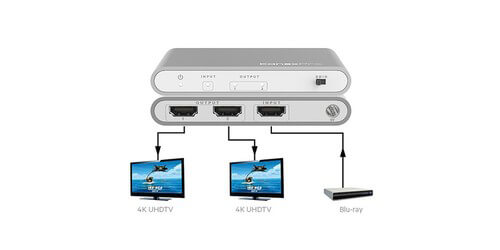

The SP-HD20-1X24K 1x2 HDMI 2.0a 4K Distribution Amplifier with HDCP 2.2 from KanexPro is a one input, two output HDMI distribution amplifier that was designed to split 4K/60 4:2:0 high-quality video signals from one source to up to two 4K displays. This device features a built-in EDID management system that allows for optimal resolution to be selected and properly outputed, to assist in avoiding response time and delays. The output also offer the ability to buffer and amplify all the HDMI signals and achieve long distance transmission of HDMI signals up to 50' or combined with an HDBaseT extender it can route signals up to 330' distances. The front panel of the unit features LED indicators for input/output signal presence. By conforming to the latest high speed HDMI specifications with HDCP 2.2 this HDMI distribution amplifier has been optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as in residential or digital signage type applications. The SP-HD20-1X24K distribution amplifier comes with a 5V DC external power supply, and is backed by a 3 year warranty from KanexPro.

  • Input: HDMI ( Female)
  • Outputs: 2 x HDMI (Female)
  • Supported Resolutions: Up to 4K/60 with 12bit YCBCR 4:2:0
  • HDMI 2.0a and HDCP 2.2 Compliant
  • HDMI Signal Range: Up to 50'
  • Operating Frequency: Vertical Frequency Range: 50/60hz
  • Conforms to High Speed HDMI specifications: Deep color, HD lossless audio formats & Lip Sync
  • EDID Selector for optimal resolutions
  • Built-in Smart EDID Control
  • Front-panel LED's for input/ output signal presence
  • Regulatory Compliance for Converter Unit: FCC, Ce, UL
  • Regulatory Compliance for Power Supply: UL, Ce, FCC
  • Power Consumption: 2W
  • Includes 5V DC external power supply
  • Dimensions (W,D,H): 2.52" 6.10" 0.67" Weight: 6.35 oz
  • Warranty: 3 Years
